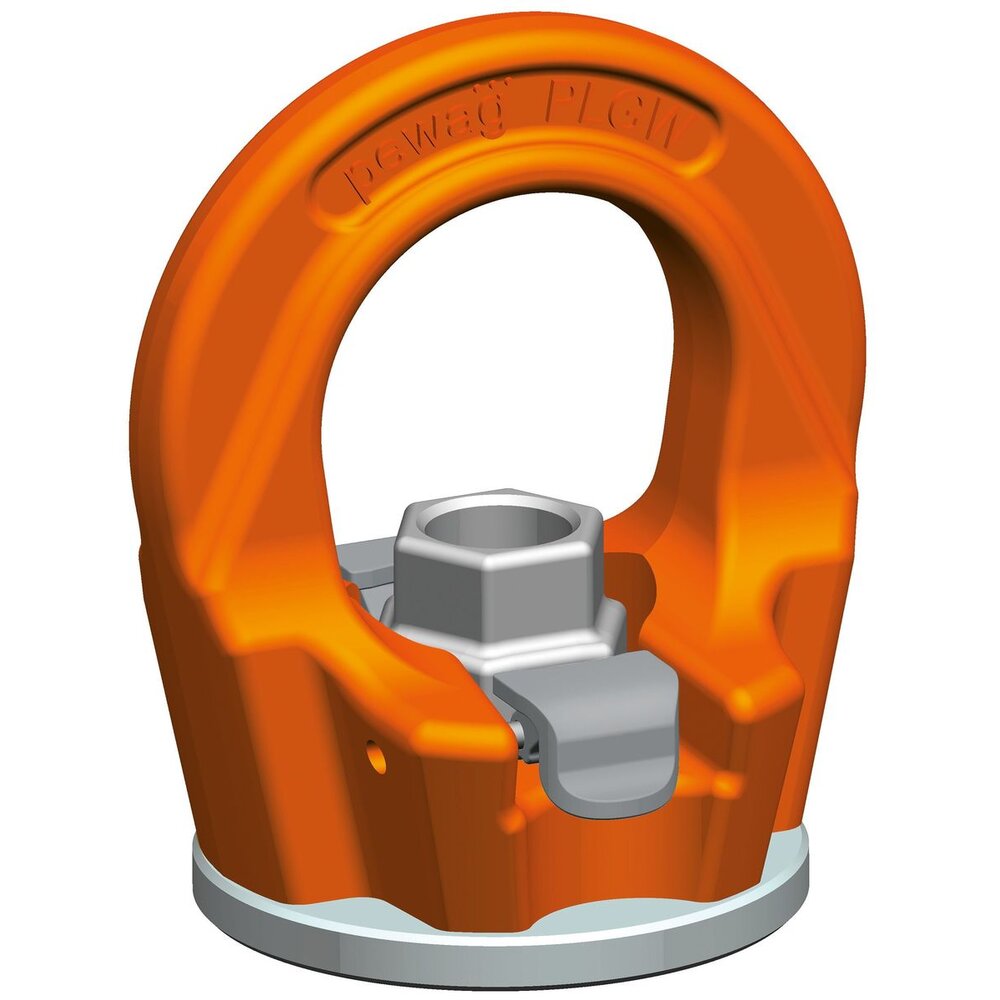

Tõstesilm tüüp PLGW-SN G10

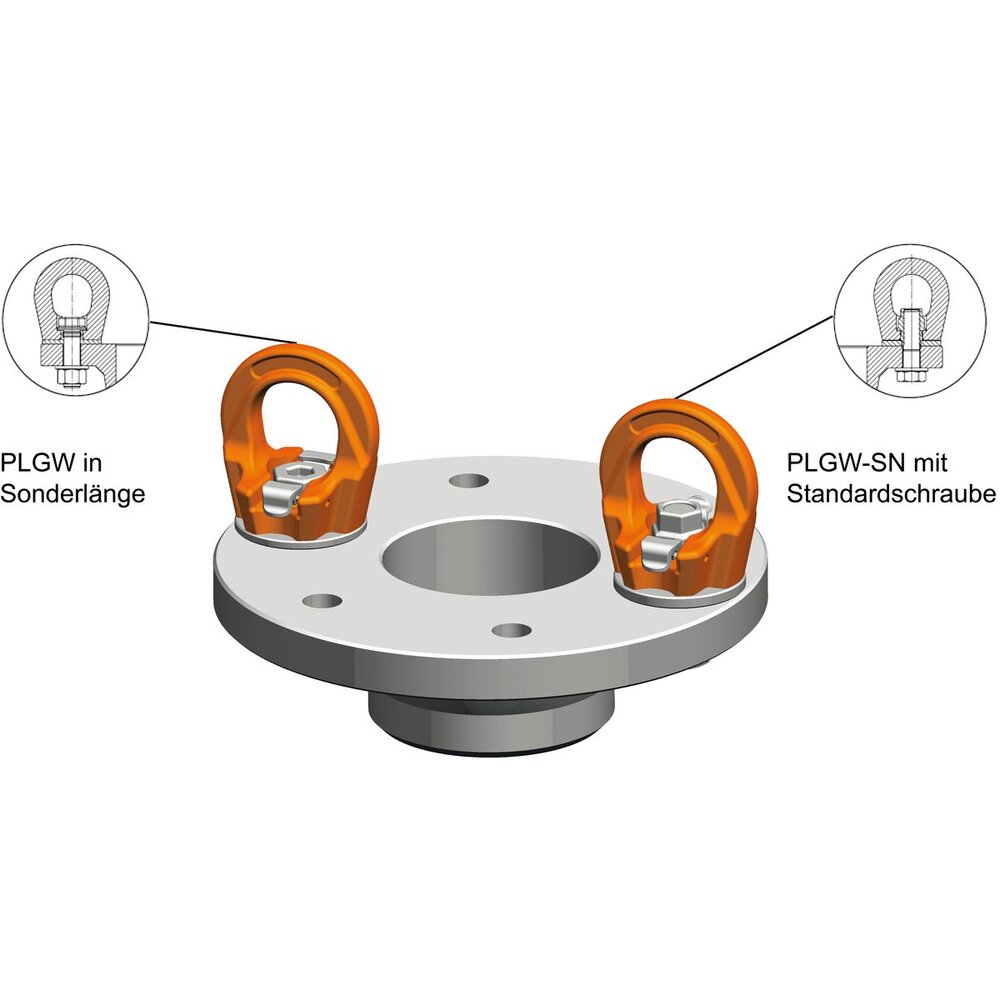

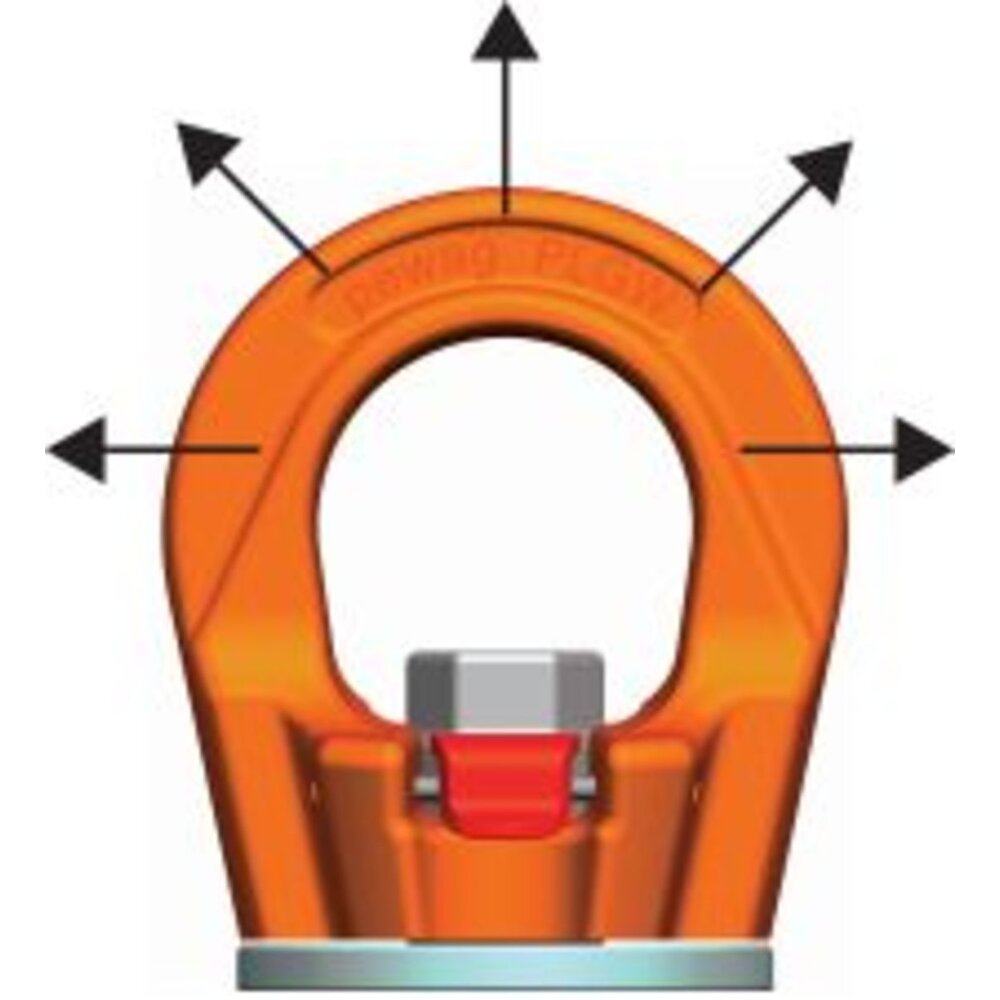

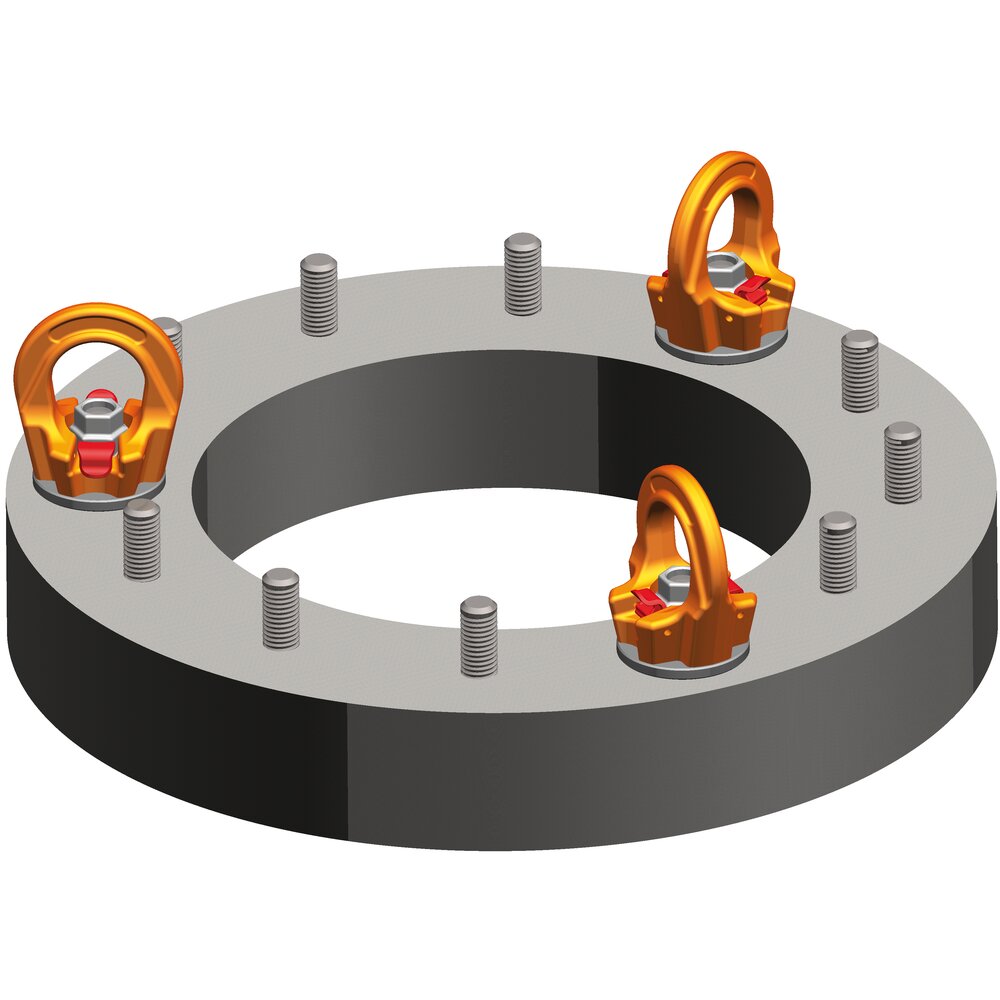

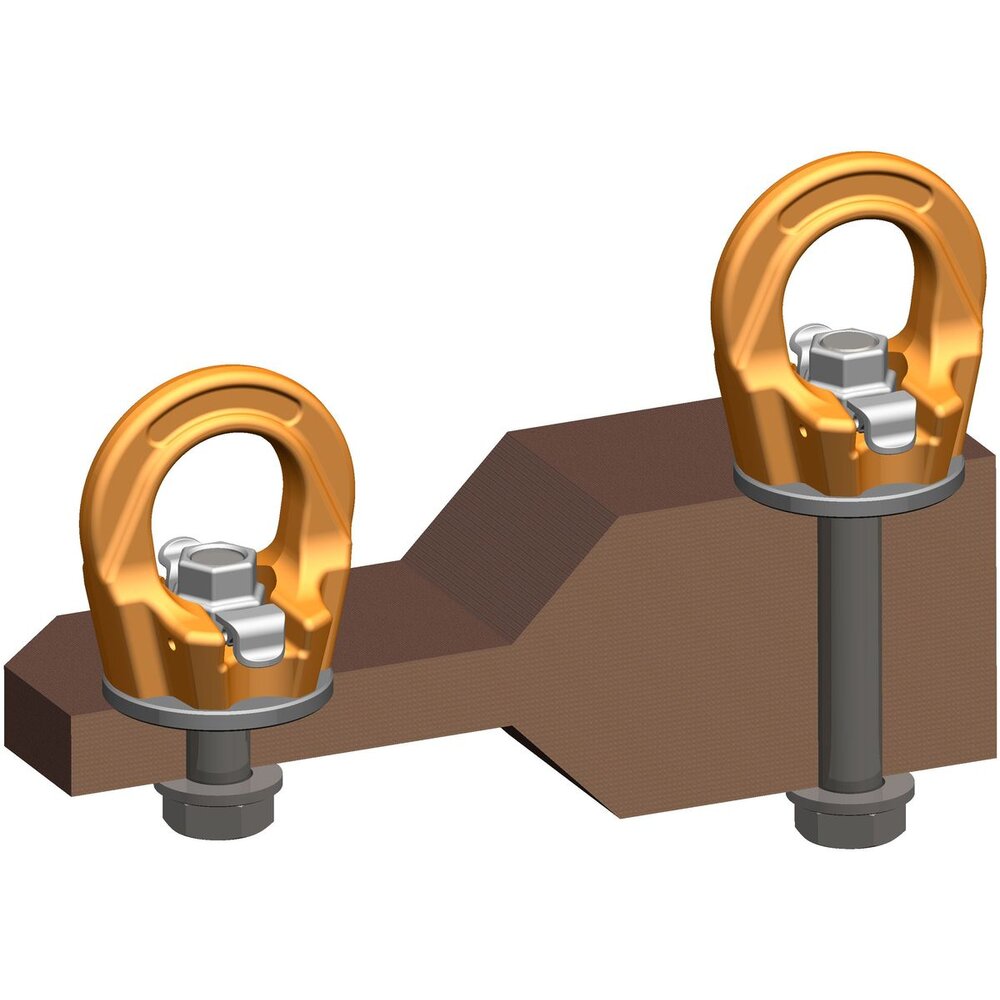

General: A revolutionary lifting eye which, thanks to the patented system with the red latches (see images) can be mounted by hand (latches in the upright position) and then freely rotate 360° around its own axis after installation (latches in the down position). The eye can be loaded within a range of 180°. The eye can be used individually or in combination with multiple eyes and should be tightened only by hand. This version of PLGW is used in those areas where a threaded bolt on the load is used instead of a simple thread. there is also the possibility to mount the lifting point PLGW-SN with a commercially available (standard) screw through the clearance hole. The benefit with the eye nut is that no matter the width of the load, the same lifting points ca be used. All you need are standard screws with different screw lenghts.

Standard: EN 1677-1, DIN ISO 9001.
  • Materjal: Alloy steel grade 10.
  • Märgistus: Vastavalt standardile, WLL, and an individual serial number.
  • Pinnakate: Painted.
  • Standard: EN 1677-1
    except grade/WLL
  • Ohutustegur: 4:1

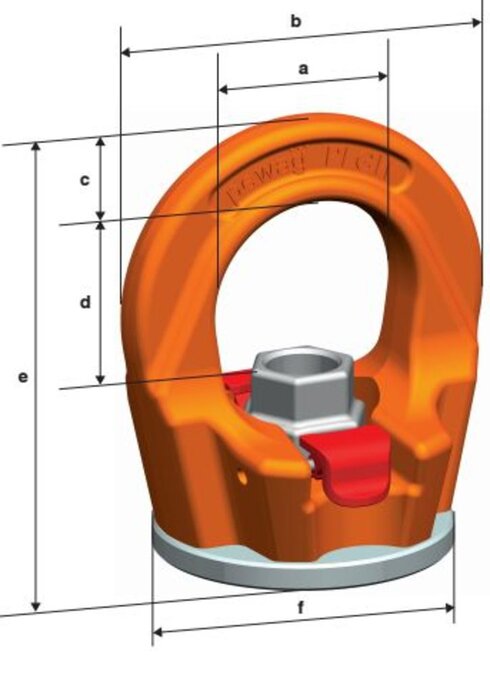

Kliki "Näita tabelit" nupule ja sa näed tehniliste andmete tabelit
