General: The pewag PLGW-PSA anchorage point is part of the anchorage system on which personal fall protection equipment can be fastened.
The PLGW-PSA is available in „Basic“ and „Supreme“: PLGW-PSA Basic is intended for permanent assembly to the anchorage system (e.g. tripod) and is mounted using a commercial Allen key.
The PLGW-PSA Supreme version has a patented system which allows for tool-free assembly and disassembly once the anchorage point is no longer in use and needs to be removed.


Standard: 795:2012 (1 person) and CEN/TS 16415 (2 persons).

  • Materjal: Alloy steel grade 10.
  • Märgistus: Vastavalt standardile, WLL, thread length, permitted number of persons and an individual serial number.
  • Pinnakate: Orange powder coated.
  • Standard: EN 795, CEN/TS/16415
Kliki sobivale reale allolevas tabelis ning sisesta soovitud kogus

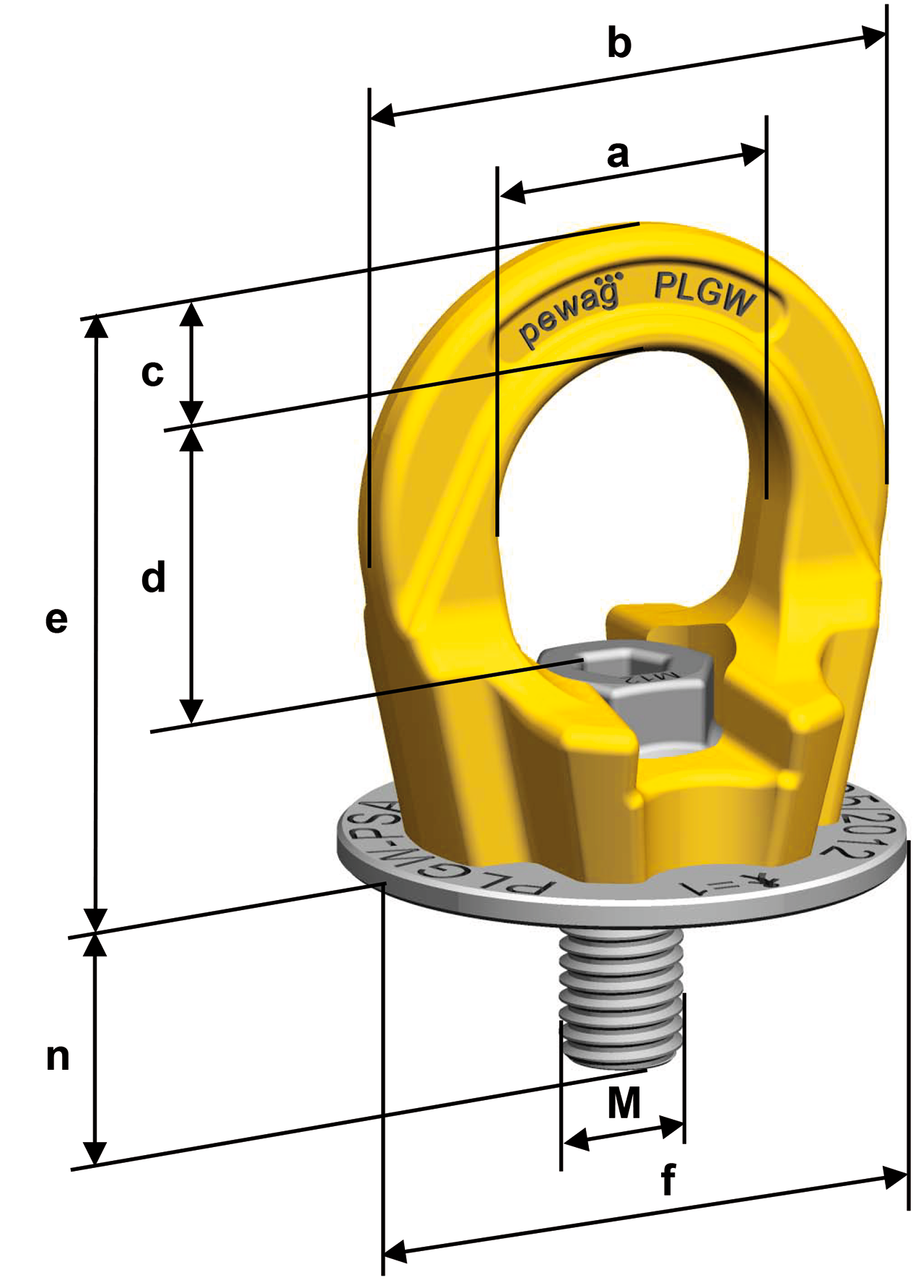

Tootekood Kood Max. number of
persons
Model a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
M
mm
n
mm
Kaal
kg
19.0960928 PLGW PSA M12 1 Supreme 30 55 12 32 63 55 160 20 0,31
19.0961066 PLGW PSA M12 1 Basic 30 55 12 32 63 55 160 20 0,31
19.0960929 PLGW PSA M16 2 Supreme 35 64 14 36 70 62 160 25 0,48
19.0961067 PLGW PSA M16 2 Basic 35 64 14 36 70 62 160 25 0,48
19.0960927 PLGW PSA M20 2 Supreme 40 69 16 41 70 66 160 30 0,63
19.0961069 PLGW PSA M20 2 Basic 40 69 16 41 78 66 160 30 0,63
