Ropeblock

General: Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results. The wedge socket is delivered complete.

Marking house and wedge: Dimension area.

Important: Follow the fitting instructions for the wire clamps, see technical information.

  • Materjal: Cast alloy steel with high mechanical properties.
  • Pinnakate: Blue painted or hot dip galvanized.
  • Märkus: The efficiency of a 6 and 8 strand wire rope/wedge socket connection is 80% of the minimum breaking load of the wire but limited to the minimum breaking load of the socket (MBL).
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood MBL
ton

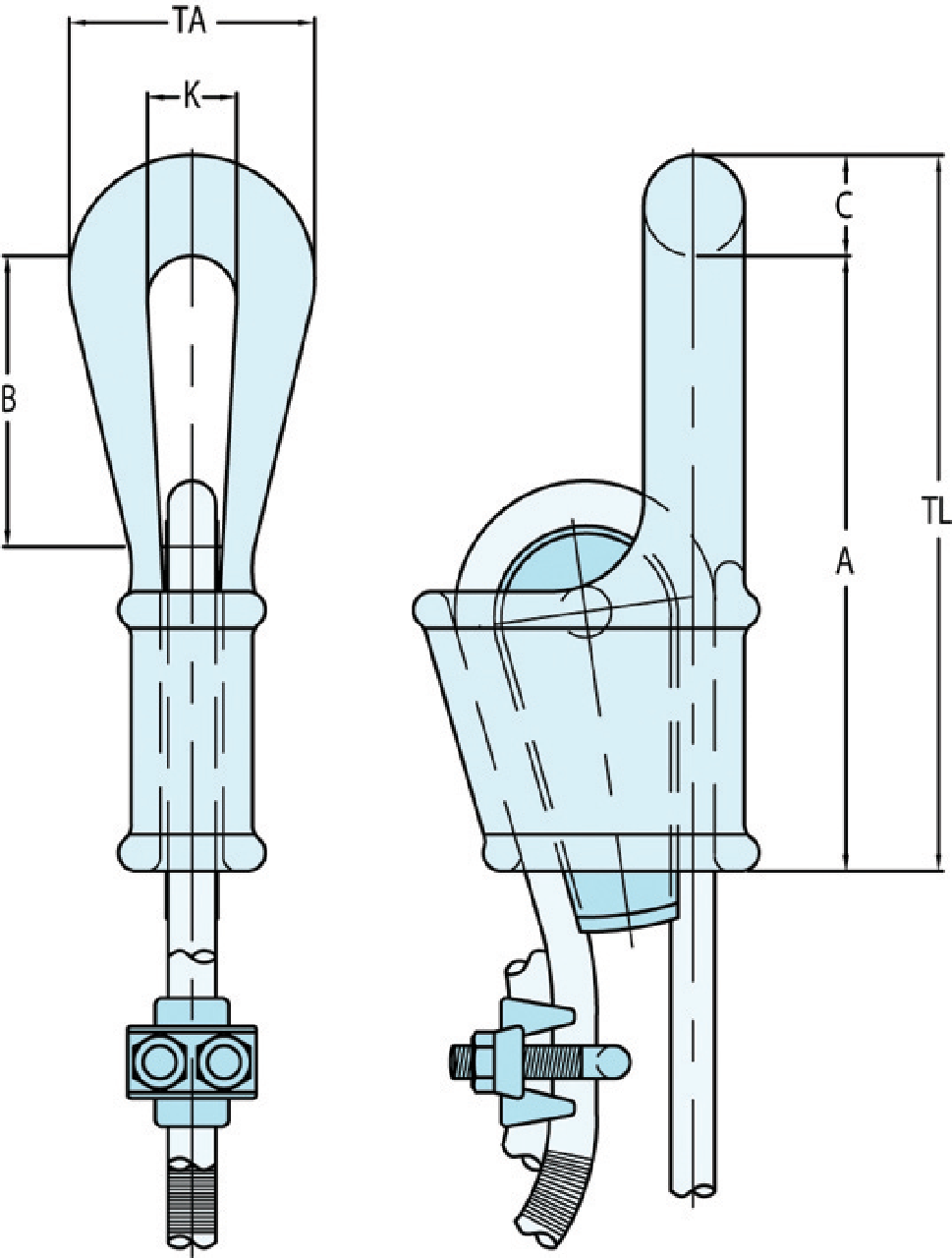

A (mm) B (mm) C (mm) K (mm) TA (mm) TL (mm) For wire Ø (mm) Kaal
kg
CAD
10.20CWS303GAL CWS 303 40 220 100 34 40 90 254 18-19 7
10.20CWS304GAL CWS 304 55 225 225 42 47 110 267 20-22 9
10.20CWS305GAL CWS 305 75 290 130 50 55 125 340 24-26 14
10.20CWS306GAL CWS 306 90 325 145 60 70 152 385 27-29 22
10.20CWS307GAL CWS 307 110 360 160 68 75 165 428 30-32 30
10.20CWS308GAL CWS 308 125 400 180 68 75 165 468 34-36 38
10.20CWS309GAL CWS 309 150 500 240 72 80 185 572 37-39 49
10.20CWS310GAL CWS 310 170 600 310 80 90 210 680 40-42 65
10.20CWS311GAL CWS 311 225 640 325 90 100 225 730 43-48 100
10.20CWS312GAL CWS 312 280 720 375 100 110 245 820 49-52 150
10.20CWS313GAL CWS 313 360 775 400 110 120 265 885 54-58 175
10.20CWS314GAL CWS 314 425 900 470 120 130 290 1 020 61-64 230
10.20CWS315GAL CWS 315 460 1 000 500 130 150 330 1 130 72-76 300
10.20CWS316GAL CWS 316 625 1 125 550 135 165 360 1 260 81-86 425
