General: pewag winner profilift gamma supreme – tighten by hand, then align in the load direction, a lifting point that has been developed and produced with the new standards in mind. The patented system has proven itself from the beginning.
It is 360° rotatable, contains a patented and interchangeable special screw, which is 100% crack-tested as well as covered with a chrome VI-free finish-protection against corrosion and marked with WLL and thread size.

Tool-free assembly and disassembly.
The latch in pos.1 does not have any contact with the screw (picture 1).
- The latch is kept in position with a patented spring
- Eye bolt is rotatable

The latch in pos. 2 has contact with the screw (picture 2).
- The latch is kept in position with a patented spring
- Eye bolt is not rotatable i.e. the fastening torque is transmitted to the screw and thus the eye bolt can be (re)assembled.
A considerably simplified alternative is the pewag PLGW pewag winner profilift gamma basic. With the same benefits as the pewag PLGW supreme in terms of measurement, carrying capacity and application, the pewag PLGW basic differs solely in the assembly: mounting and removing requires the use of a hexagon Allen wrench.




Permissible usage
Load capacity acc. to the inspection certificate table of WLL in the shown directions of pull (see picture 3).
- Adjust the lifting point in the permitted load direction before loading
- Loadable with a 4-fold safety under break in all directions
Non permissible usage
Make sure when choosing the assembly that improper loading can not arise e.g. if:
- The direction of pull is obstructed
- Direction of pull is not in the foreseen area (see picture 4)
- Loading ring rests against edges or loads

To calculate the necessary thread length (L):
L= H + S + K + X

H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

In case of requesting a lifting point with a special thread length, please mention the requested thread length “L”.
pewag provides, along with the standard and maximum thread lengths, specially customised thread lengths.
Supplied customised and maxium thread lengths include a washer and a crack-tested, corrosion-proofed screw nut.

  • Materjal: Alloy steel.
  • Märgistus: WLL, thread size and ID number.
  • Pinnakate: Painted.
  • Standard: EN 1677-1
  • Ohutustegur: 4:1.
  • Klass: 10
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
tonn

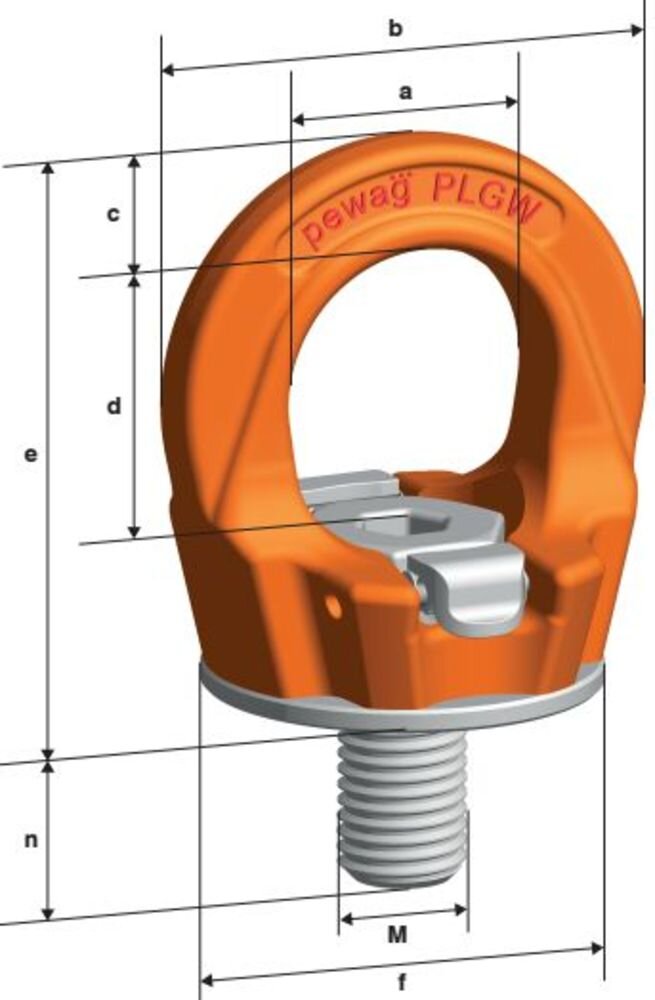

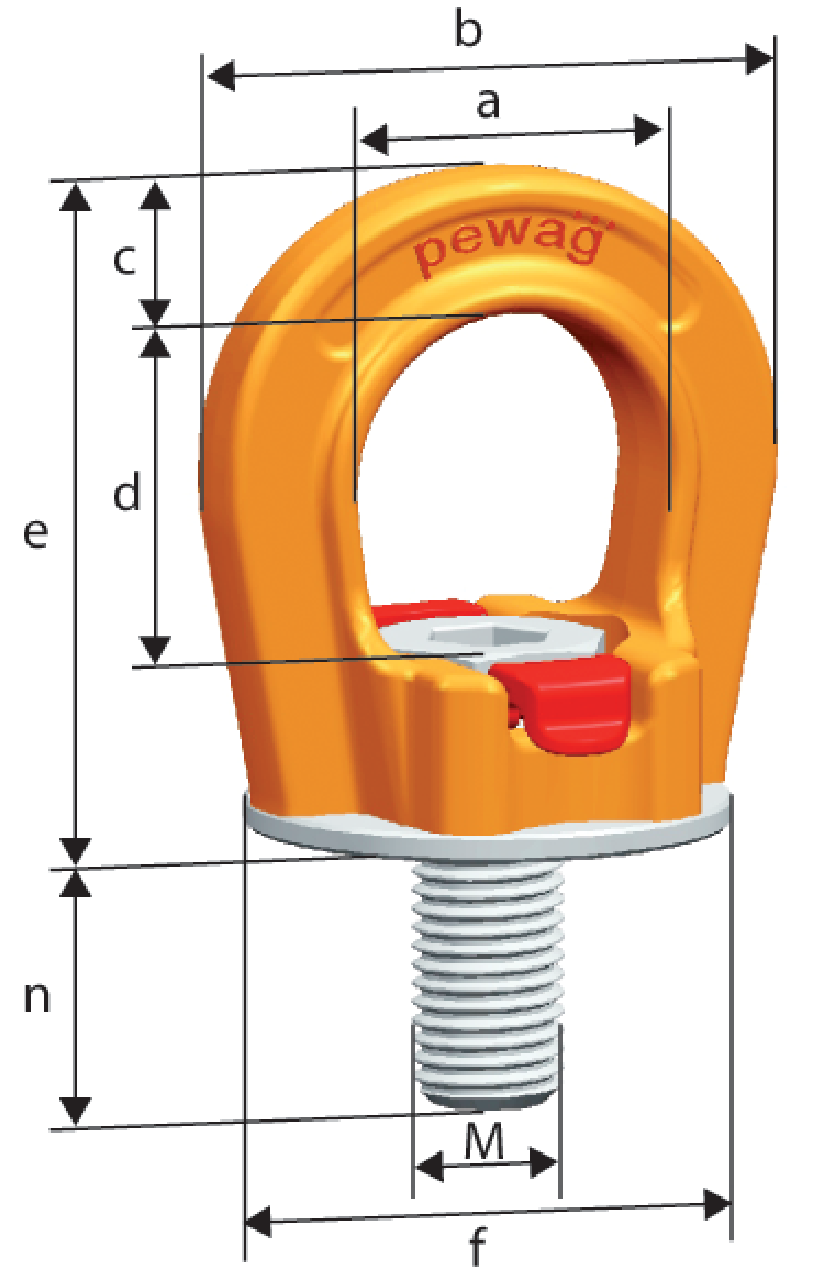

mm Keere n (mm) n max. (mm) A (mm) B (mm) C (mm) D (mm) e (mm) Ø f (mm) Kaal
kg
CAD
11.4291753 PLGW 0,3 t 0,3 6 M8 15 90 25 45 10 27 53 35 0,17
11.4291754 PLGW 0,5 t 0,5 6 M10 15 160 25 45 10 27 53 35 0,18
11.4291755 PLGW 0,7 t 0,7 8 M12 20 160 30 55 12 32 63 43 0,29
11.4291756 PLGW 1,5 t 1,5 10 M16 25 160 35 64 14 36 70 50 0,45
11.4291757 PLGW 2,3 t 2,3 12 M20 30 160 40 73 16 41 81 54 0,62
11.4291758 PLGW 3,2 t 3,2 14 M24 35 - 50 86 18 50 93 69 1,1
11.4291759 PLGW 4 t (4,9 t) 4 17 M30 45 - 60 110 25 60 114 90 2,2
11.4291760 PLGW 7 t 7 19 M36 55 - 70 132 31 70 136 108 3,9
11.4291761 PLGW 9 t 9 22 M42 65 - 80 152 36 72 153 126 5,8
11.4291762 PLGW 12 t 12 24 M48 75 - 95 179 42 88 179 148 8,9

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla

Kinnitusviis




Kinnituspunktide arv
1
1
2
2
2
2
3+4
3+4
2
3+4


Tõstenurk
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
asymm.
asymm.

Kood Keere
WLL (t)
mm









PLGW 0,3 t
M8
1,0
0,3
2,0
0,6
0,4
0,3
0,6
0,4
0,3
0,3
6
PLGW 0,5 t
M10
1,5
0,5
3,0
1
0,7
0,5
1
0,7
0,5
0,5
6
PLGW 0,7 t
M12
2
0,7
4
1,4
1
0,7
1,4
1
0,7
0,7
8
PLGW 1,5 t
M16
4
1,5
8
3
2,1
1,5
3
2,2
1,5
1,5
10
PLGW 2,3 t
M20
5
2,3
10
4,6
3,2
2,3
4,8
3,4
2,3
2,3
12
PLGW 3,2 t
M24
6,5
3,2
13
6,4
4,5
3,2
6,7
4,8
3,2
3,2
14
PLGW 4 t
M30
12
4,0
24
8,0
5,6
4,0
8,2
6,0
4,0
4,0
17
PLGW 4,9 t*
M30
12
4,9
24
9,8
6,9
4,9
10,3
7,3
4,9
4,9
17
PLGW 7 t
M36
15
7
30
14
9,8
7
14,7
10,5
7
7
19
PLGW 9 t
M42
22
9
44
18
12,6
9
18,9
13,5
9
9
22
PLGW 12 t
M48
30
12
60
24
16,8
12
25
18
12
12
24
