Green Pin

- General: Dee shackles with square sunken hole screw pin.


- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C271, Grade A.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 certificate, manufacturer test certificate and/or EC Declaration of Conformity.

  • Materjal: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Pinnakate: Hot dipped galvanized.
  • Standard: EN 13889
  • Märkus: Key for (un)screwing the pin sold separately.
  • Ohutustegur: 6:1
  • Klass: 6
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

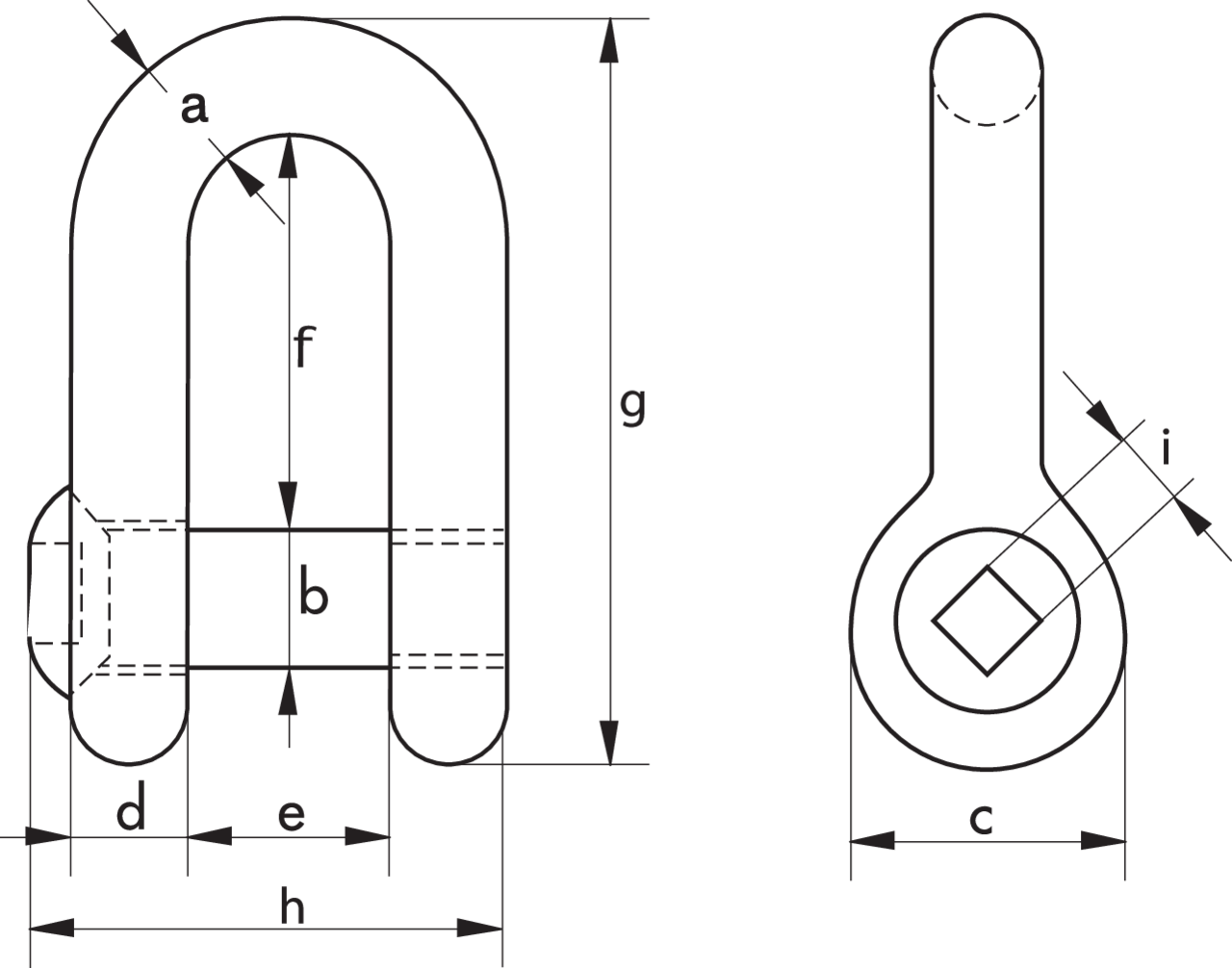

A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g h (mm) i (mm) Kaal
kg
CAD
11.31GPGDVV13 2 13,5 16 34 13 22 43 81 51 11 0,34
11.31GPGDVV16 3,25 16 19 40 16 27 51 97 63 11 0,6
11.31GPGDVV19 4,75 19 22 46 19 31 59 112 74 11 0,98
11.31GPGDVV22 6,5 22 25 52 22 36 73 134 85 13 1,26
11.31GPGDVV25 8,5 25 28 59 25 43 85 154 99 13 2,14
11.31GPGDVV28 9,5 28 32 66 28 47 90 167 110 17 3,05
11.31GPGDVV32 12 32 35 72 32 51 94 180 122 17 3,56
11.31GPGDVV35 13,5 35 38 80 35 57 115 209 135 17 5,17
11.31GPGDVV38 17 38 42 88 38 60 127 230 145 17 6,84
