Green Pin
- General: Bow shackles with safety bolt.


- Temperature range: -20°C up to +200°C.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate and/or EC Declaration of Conformity.
  • Materjal: Bow and pin alloy steel, Grade 8, quenched and tempered.
  • Pinnakate: Hot dipped galvanized.
  • Ohutustegur: 6:1
  • Klass: 8
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
Ton

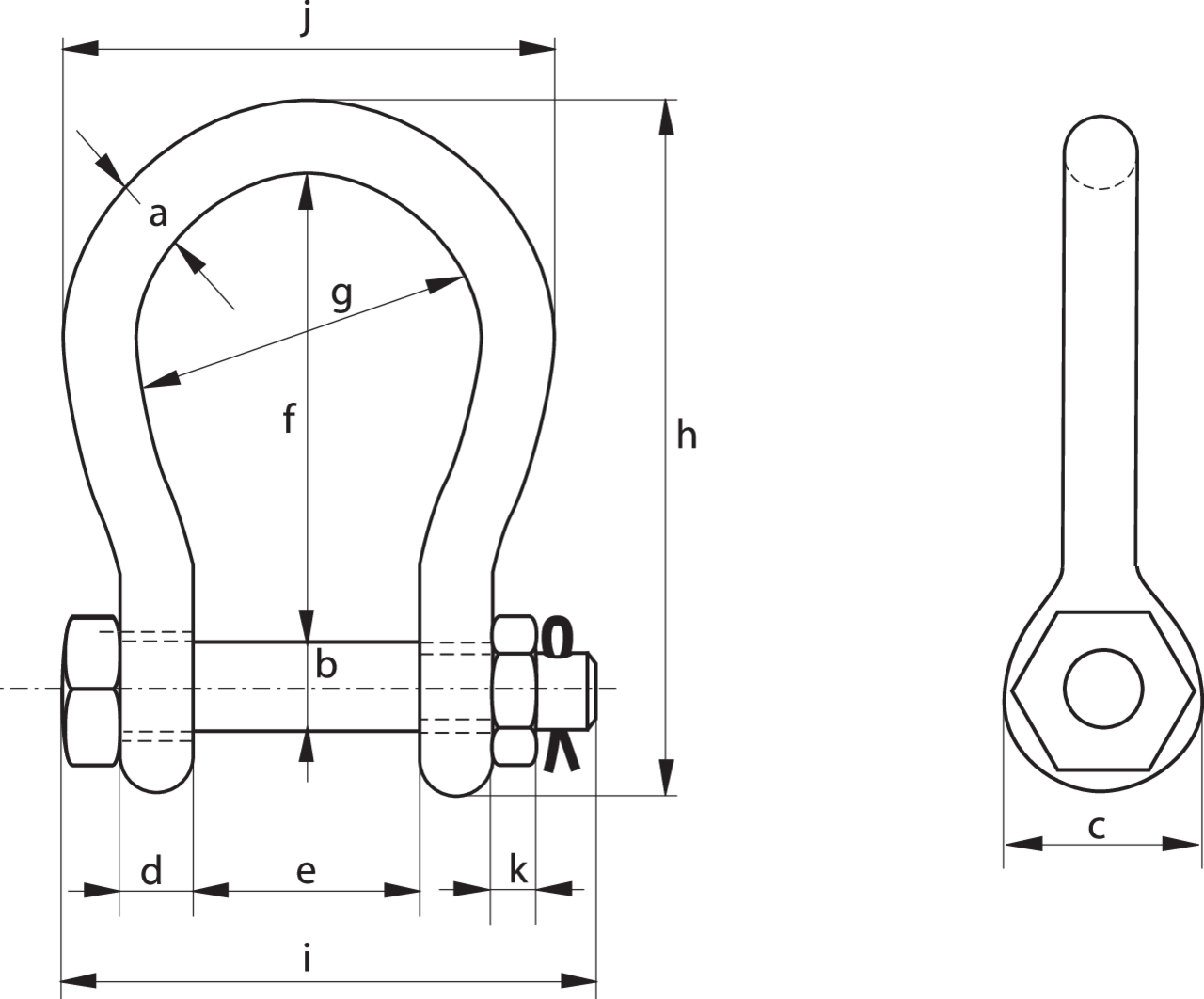

A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g h (mm) i (mm) j (mm) k (mm) Kaal
kg
11.31ASGHMB22 4,75 22 25 52 22 63 112 88 173 157 132 23 2,08
11.31ASGHMB25 6,5 25 28 59 25 75 135 105 204 183 155 25 3,14
11.31ASGHMB28 8,5 28 32 66 28 82 148 115 225 205 171 27 4,36
11.31ASGHMB32 9,5 32 35 72 32 90 162 126 248 224 190 30 5,95
11.31ASGHMB35 12 35 38 79 35 100 180 140 274 245 210 33 7,87
11.31ASGHMB38 16 38 42 88 38 106 216 159 319 248 235 19 12,5
11.31ASGHMB45 25 45 50 103 45 127 248 175 370 296 265 23 16,7
11.31ASGHMB50 30 50 57 118 50 146 273 207 411 332 307 26 25
11.31ASGHMB65 55 65 70 145 65 165 314 213 487 391 343 32 45
11.31ASGHMB75 75 83 83 164 83 184 330 254 537 460 420 39 70
