Green Pin
- General: Bow shackles with saftety bolt.



- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 150 tons are supplied with a Lloyd's Register of Shipping Certificate on proof load.
  • Materjal: Bow and pin alloy steel, Grade 8 quenched and tempered.
  • Pinnakate: Shackle bow painted silver, pin painted green (120 tons shackle is hot dipped galvanized).
  • Ohutustegur: 5:1
  • Klass: 8
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

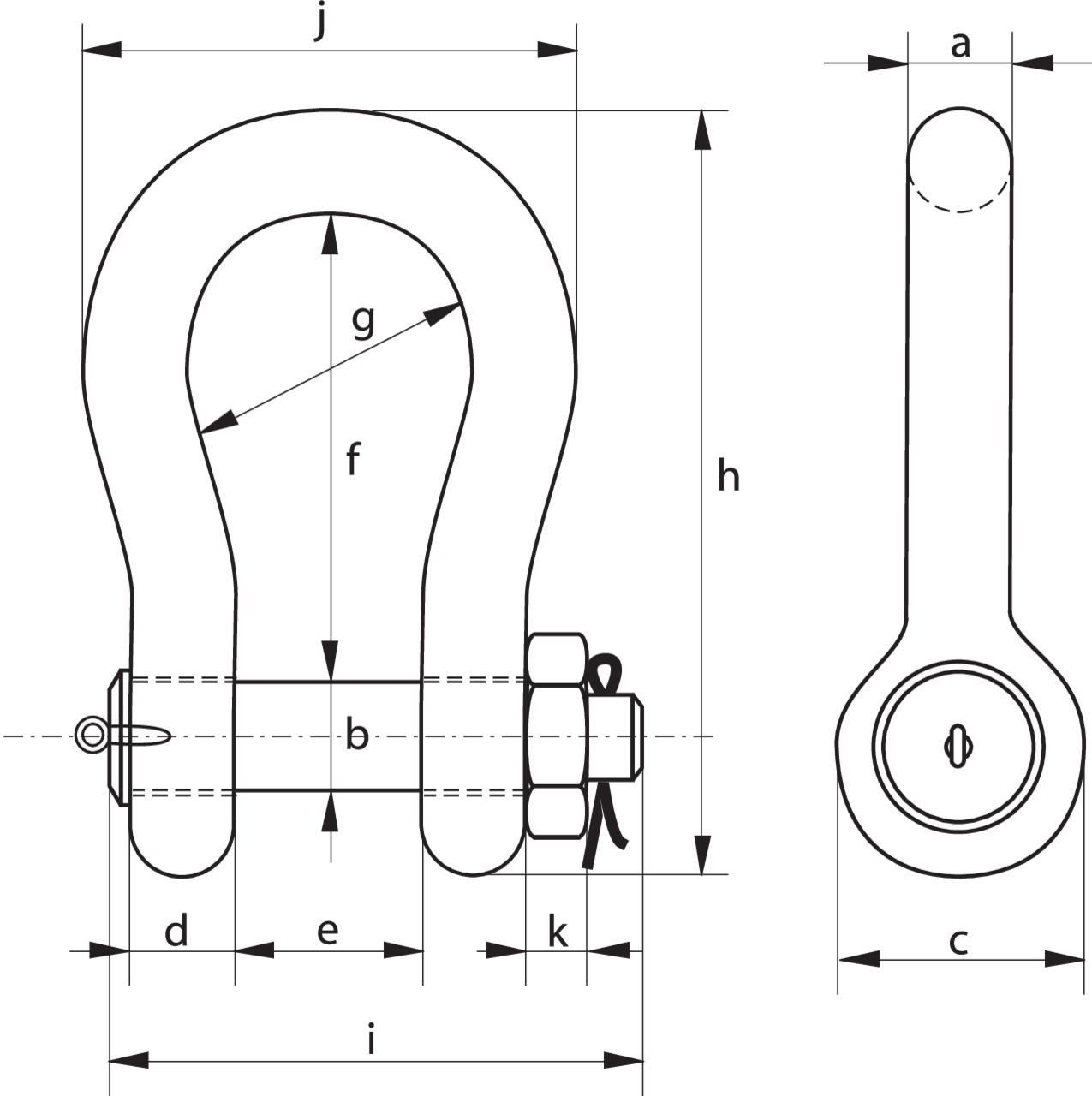

A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g h (mm) i (mm) j (mm) k (mm) Kaal
kg
CAD
11.31HDGPHM0120 120 95 95 208 91 147 400 238 647 440 428 50 110
11.31HDGPHM0150 150 105 108 238 102 169 410 275 688 490 485 60 160
11.31HDGPHM0200 200 120 130 279 113 179 513 290 838 520 530 60 235
11.31HDGPHM0250 250 130 140 299 118 205 554 305 904 560 565 65 285
11.31HDGPHM0300 300 140 150 325 123 205 618 305 996 575 585 70 340
11.31HDGPHM0400 400 170 175 376 164 231 668 325 1 114 690 665 70 560
11.31HDGPHM0500 500 180 185 398 164 256 718 350 1 190 720 710 70 685
11.31HDGPHM0600 600 200 205 444 189 282 718 375 1 243 810 775 70 880
11.31HDGPHM0700 700 210 215 454 204 308 718 400 1 263 870 820 70 980
11.31HDGPHM0800 800 210 220 464 204 308 718 400 1 270 870 820 70 1 100
11.31HDGPHM0900 900 220 230 485 215 328 718 420 1 296 920 860 70 1 280
11.31HDGPHM1000 1 000 240 240 515 215 349 718 420 1 336 940 900 70 1 460
11.31HDGPHM1250 1 250 260 270 585 230 369 768 450 1 456 1 025 970 70 1 990
11.31HDGPHM1500 1 500 280 290 625 230 369 818 450 1 556 1 025 1 010 70 2 400
