Terastross 18x7-WSC, ROPETEX S18

Tootekirjeldus

Ropetex
  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Attribute icon

ROPETEX S18 is a semi-rotation resistant steel wire rope consisting of two layers of strands and a (steel) wire strand core. As the outer strands are closed in the opposite direction of the inner strands this rope is considered as semi-rotation resistant rope.

ROPETEX S18 should not be used with a swivel and for unguided single part in great lifting height, with reference to the rotational properties (see manual).

ROPETEX S18 is mostly used in diameter from 3 to 8 mm in several lifting applications like truck cranes, overhead cranes, jib cranes, electrical hoists and all other applications where a semi-rotation resistant wire rope is good enough.

If you are searching for a rotation-resistant steel wire rope, look at ROPETEX S55.

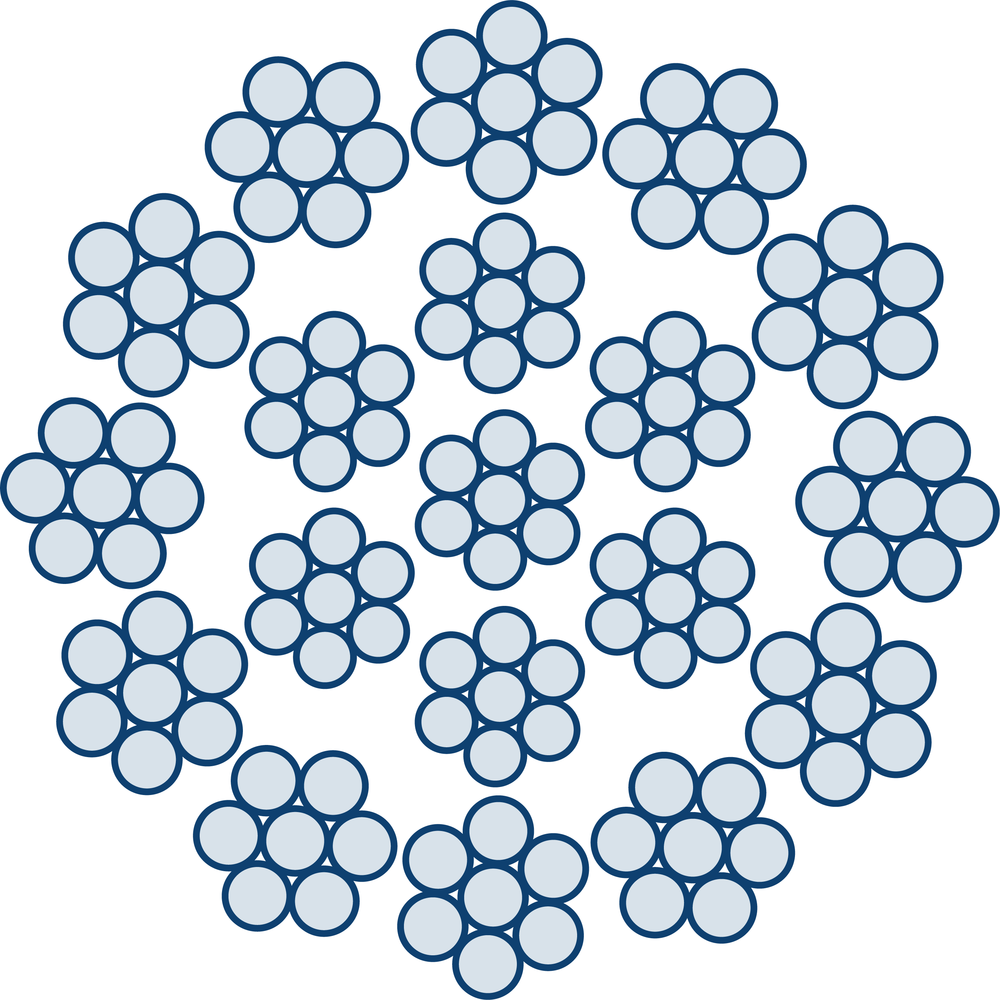

  • Trossi konstruktsioon: 18x7-WSC
  • Märgistus: Vastavalt standardile
  • Temperatuuri vahemik: -40°C kuni +200°C, kasutades temperatuuridel 100°C - 200°C arvestage katkekoormuseks -10 %
  • Standard: EN 12385-4
  • Märkus: Klass 35x7 trosse võib asendada ainult sama või võrreldava klassi trossidega (mitte 18x7). Samas tehnilisest seisukohast võib 18x7 trosse asendada 35x7 trossidega.
  • Täitefaktor: 0,55
  • RCN: 23-1
