Gunnebo Industries





  • Material: Alloy steel
  • Marking: Code.
  • Finish: Painted.
  • Note: Not for toplift!
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

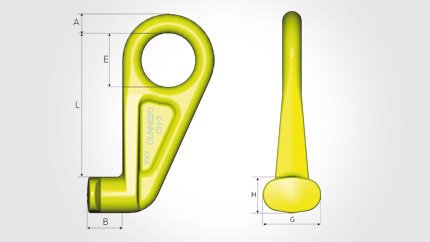

Код продукции Code WLL EWL Model A
mm
B
mm
E
mm
G
mm
H
mm
L
mm
Weight CAD
11.27Z101221 CH-3L 12,5 187 45° left 25 46 70 75 47 187 3,8
11.27Z101220 CH-3 12,5 187 Straight 25 46 70 75 47 187 3,8
11.27Z101219 CH-3R 12,5 187 45° right 25 46 70 75 47 187 3,8

Download CAD
