General: Chain for different applications.

Standard: Dimension acc. to DIN 766.

WARNING! Not for lifting.

  • Material: AISI 316.
  • Grade: 2
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
Breaking force
kN
Breaking force
kP

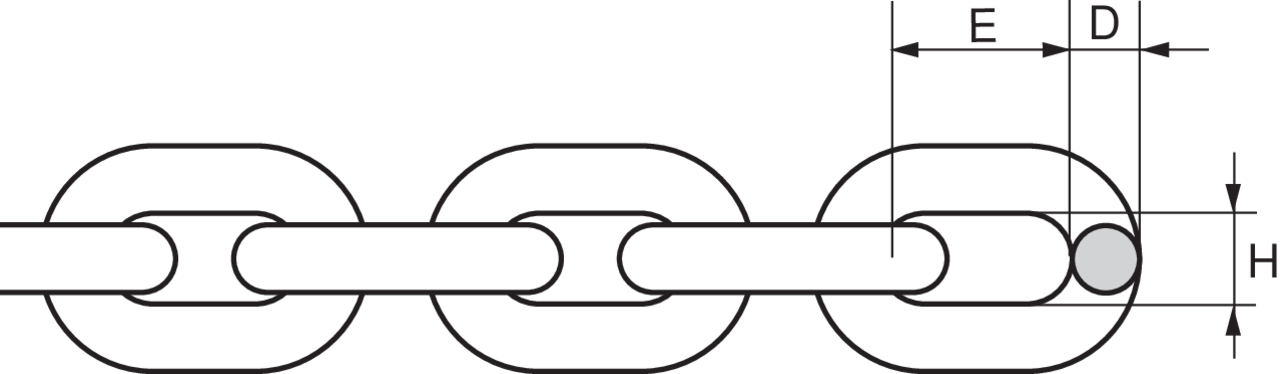

D
mm
E
mm
H
mm
Weight
kg/m
CAD
11.60766040S KLR-4-D2 4 5,9 600 4 16 6 0,32
11.60766050S KLR-5-D2 5 9,8 1 000 5 18,5 7 0,5
11.60766060S KLR-6-D2 6 13,7 1 400 6 18,5 8 0,75
11.60766080S KLR-8-D2 8 24,5 2 500 8 24 10 1,4
11.60766100S KLR-10-D2 10 39,2 4 000 10 28 14 2,3
11.60766130S KLR-13-D2 13 62,8 6 400 13 36 18 3,8
