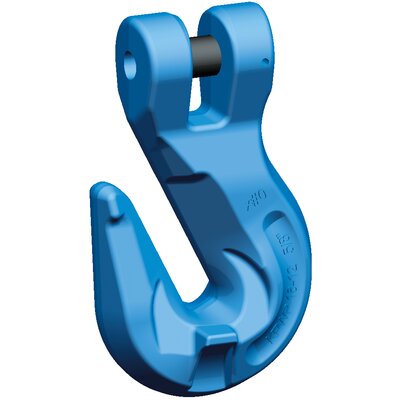

KPWP Clevis grab hook is suitable for the shortening of chains and the forming of slings that must not tighten.

  • Material: Alloy steel grade 12.
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Класс: 12
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.

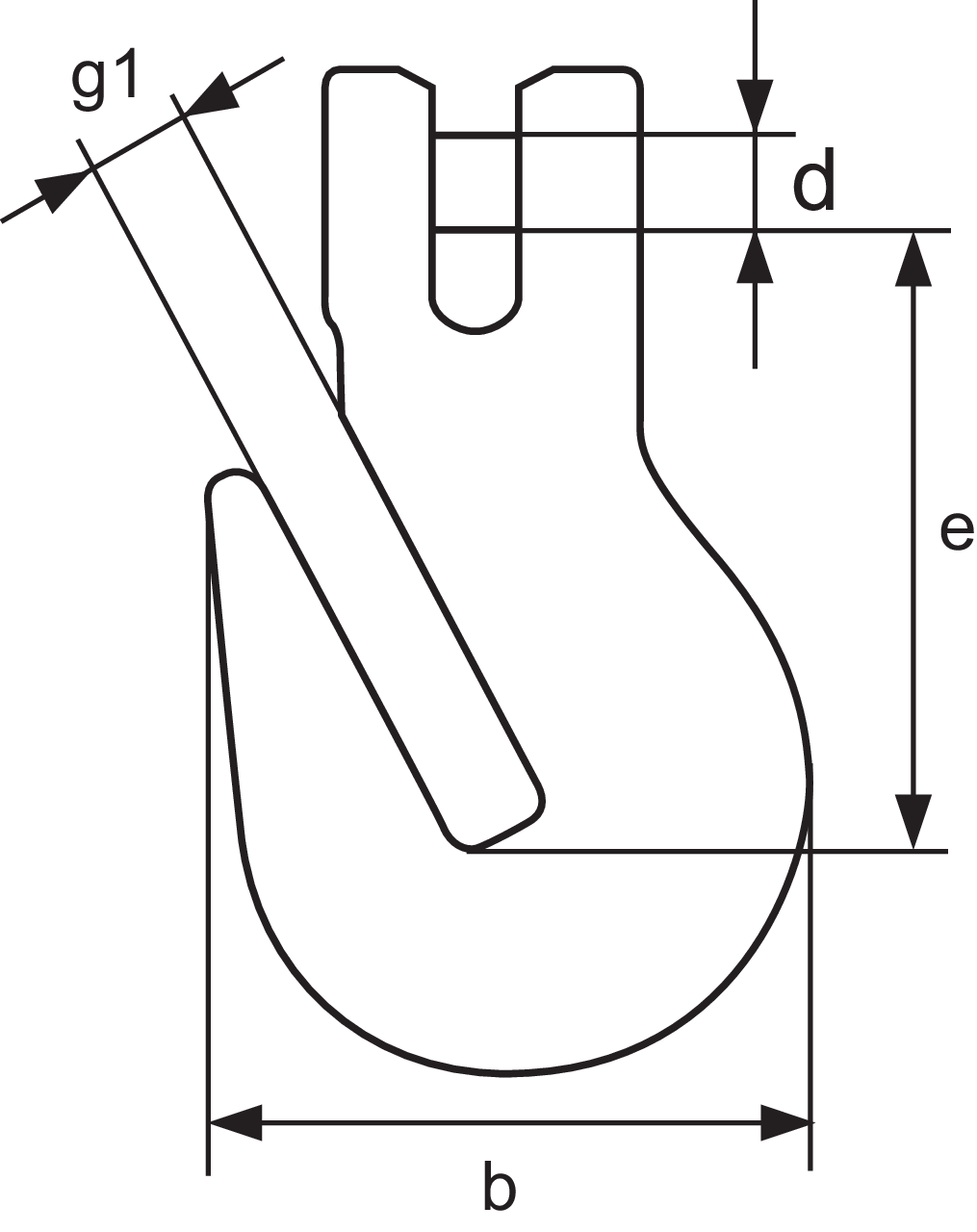

Код товара Код WLL
ton
e
mm
b
mm
d
mm
g1
mm
Вес
kg
CAD
11.228884 KPWP 7 2,3 63 70 10 10 0,58 -
11.228910 KPWP 8 3 62 70 11 10 0,58 -
11.228913 KPWP 10 5 73 83 14 12 1 -
11.228939 KPWP 13 8 98 104 18 16 2,29 -
11.229958 KPWP 16 12,5 124 123 21 19 4,32 -
