Ropeblock
Vali sobiv rida allolevast tabelist ja kliki ostukorvi ikoonile

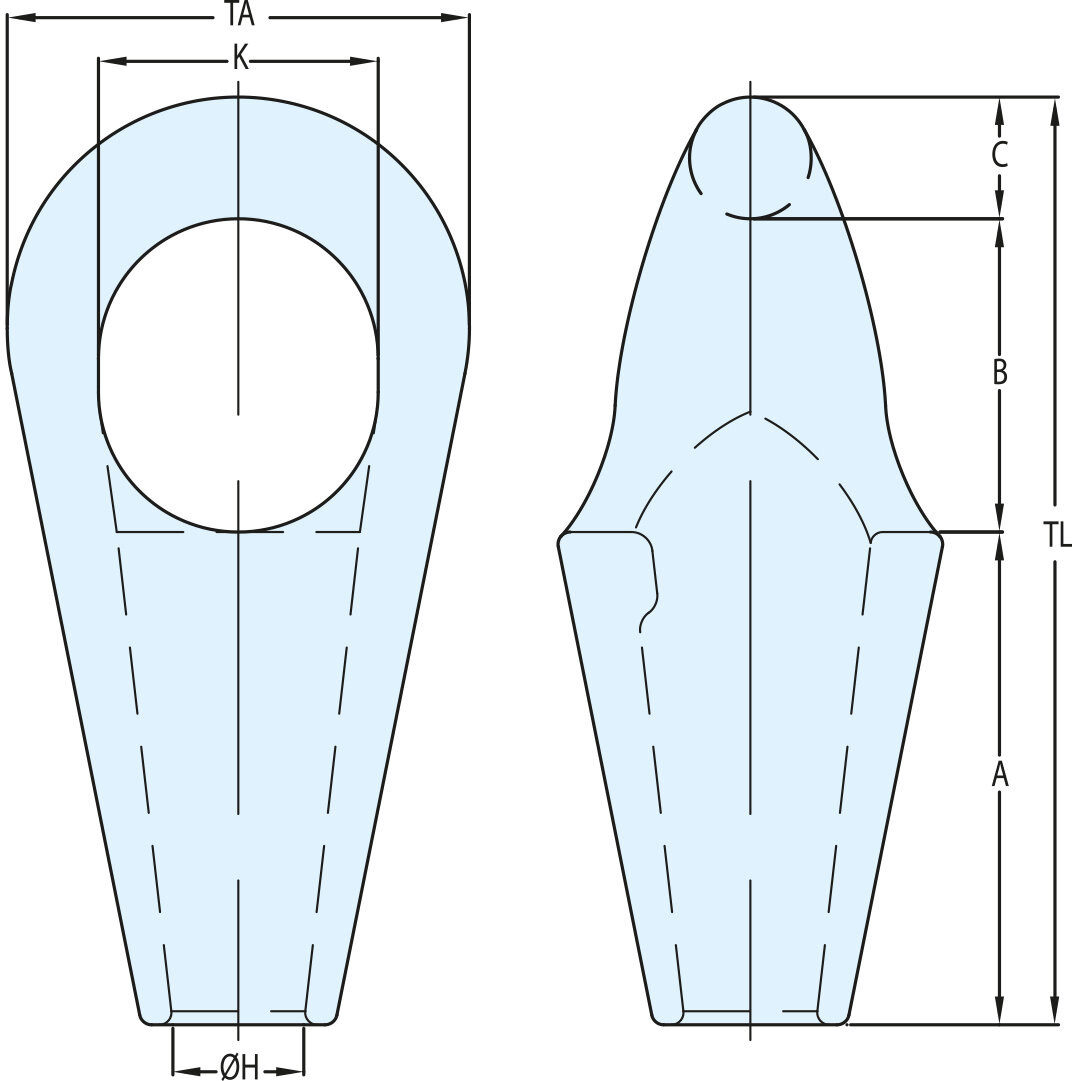

Tootekood Rope diameter
mm
MBL
ton
Model no. For wire Ø inch A
mm
B
mm
C
mm
Ø H
mm
K
mm
TA
mm
TL
mm
Kaal
kg
10.42445120010 31-36 140 SBS 512 11/4 - 13/8 141 83 38 39 75 132 262 7
10.42445170010 37-42 160 SBS 517 11/2 - 15/8 162 103 40 44 92 152 305 10
10.424.5190010 43-48 200 SBS 519 13/4 - 17/8 188 120 48 51 112 178 356 16
10.42445220010 49-54 250 SBS 522 2 - 21/8 204 132 54 59 120 200 390 21
10.42445240010 55-60 320 SBS 524 21/4 - 23/8 230 148 62 64 135 220 440 28
10.42445260010 61-68 400 SBS 526 21/2 - 25/8 265 165 68 73 150 250 498 44
10.42445270010 69-75 500 SBS 527 23/4 - 27/8 87 178 75 79 164 274 540 53
10.42445280010 76-80 600 SBS 528 3 - 35/8 314 195 76 89 175 295 585 70
10.42445290010 81-86 700 SBS 529 31/4 - 33/8 327 216 82 92 194 320 625 81
10.42445300010 87-93 800 SBS 530 31/2 - 35/8 358 220 92 99 202 350 670 112
10.42445310010 94-102 900 SBS 531 33/4 - 4 365 235 100 105 215 375 700 130
10.42445330010 108-115 1 000 SBS 533 41/4 - 41/2 420 270 110 120 240 410 800 182
