Powertex
  • Ohutustegur: 4:1
  • Klass: 10
Vali sobiv rida allolevast tabelist ja kliki ostukorvi ikoonile

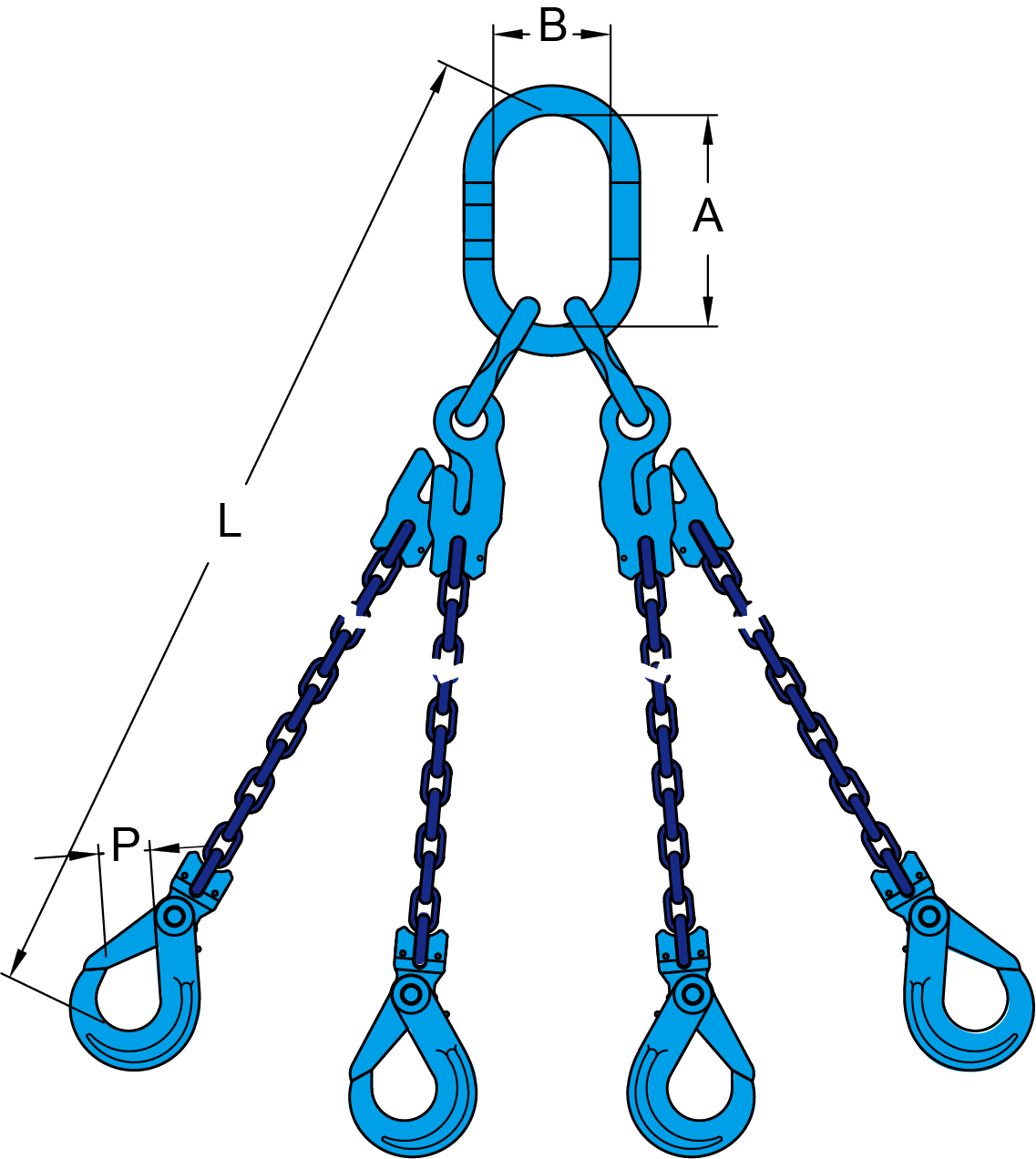

Tootekood Pikkus (m) Kett
mm
WLL ß 0°-45°
ton
WLL ß 45°-60°
ton
A
mm
B
mm
P
mm
Kaal
kg
CAD
11.91PCX46606015 1,5 6 3,0 2,12 160 95 28 7,9
11.91PCX46606020 2,0 6 3,0 2,12 160 95 28 9,6
11.91PCX46608020 2,0 8 5,3 3,75 170 105 34 17,7
11.91PCX46608025 2,5 8 5,3 3,75 170 105 34 20,7
11.91PCX46608030 3,0 8 5,3 3,75 170 105 34 23,8
11.91PCX46610025 2,5 10 8,0 6,0 190 110 44 31,9
11.91PCX46610030 3,0 10 8,0 6,0 190 110 44 36,5
11.91PCX46610035 3,5 10 8,0 6,0 190 110 44 41,1

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
