Crosby

Design: Jaw and eye swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

Proof load: 2 x WLL.

Important! Crosby swivels should only be used with the recommended wire rope.

  • Märgistus: WLL.
  • Pinnakate: Painted.
  • Ohutustegur: 5:1.
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

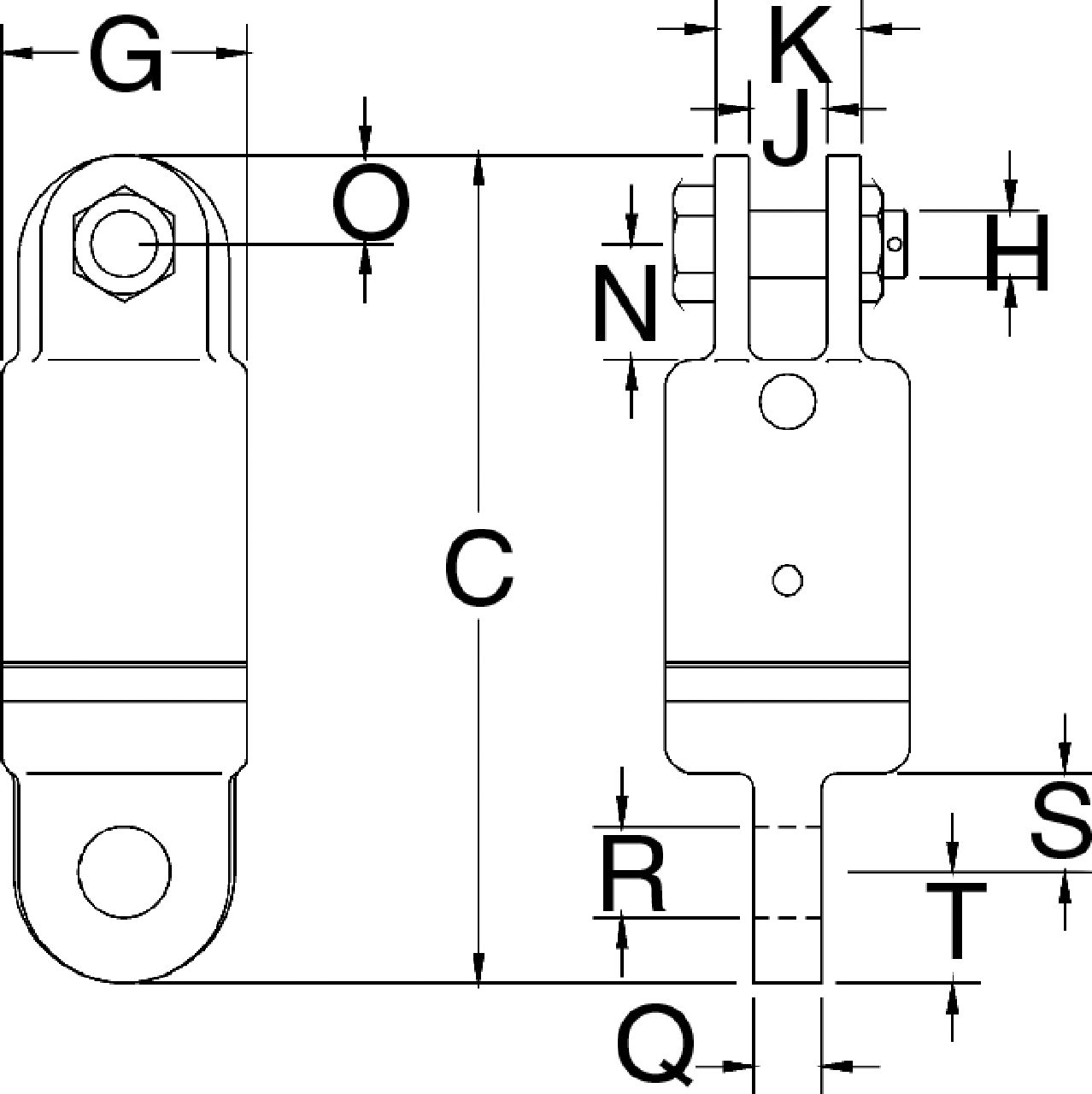

Trossi Ø (mm) Swivel No C (mm) G (mm) H (mm) J (mm) K (mm) N (mm) O (mm) Q (mm) R (mm) S (mm) T (mm) Kaal
kg
CAD
11.46297039 3 13 3-S-3 237 70,0 19,1 22,4 41,1 33,3 25,4 19,1 26,2 28,4 31,8 4,14
11.46297235 5 16 5-S-3 256 76,0 22,4 25,4 57,0 41,1 28,4 25,4 32,5 31,8 31,8 6,12
11.46297431 8,5 19 8-S-3 311 102 25,4 39,5 71,5 54,0 35,1 31,8 35,8 41,1 38,1 11,3
11.46297636 10 22 10-S-3 409 114 38,1 44,5 86,1 89,0 44,5 42,9 42,9 70,0 47,8 19,7
11.46297832 15 26 15-S-3 425 127 38,1 44,5 86,0 89,0 44,5 49,3 51,5 70,0 54,0 27,7
11.46298136 25 25-S-3 546 152 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 61
11.46298234 35 35-S-3 546 165 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 68
11.46298332 45 45-S-3 657 178 57,0 63,5 127 102 76,0 63,5 64,5 102 76,0 102
