Green Pin


- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A.
- Temperature range: -40°C up to +200°C.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test
certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.
  • Materjal: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Pinnakate: Hot dipped galvanized.
  • Standard: EN 13889
  • Ohutustegur: 6:1
  • Klass: 6
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
Ton

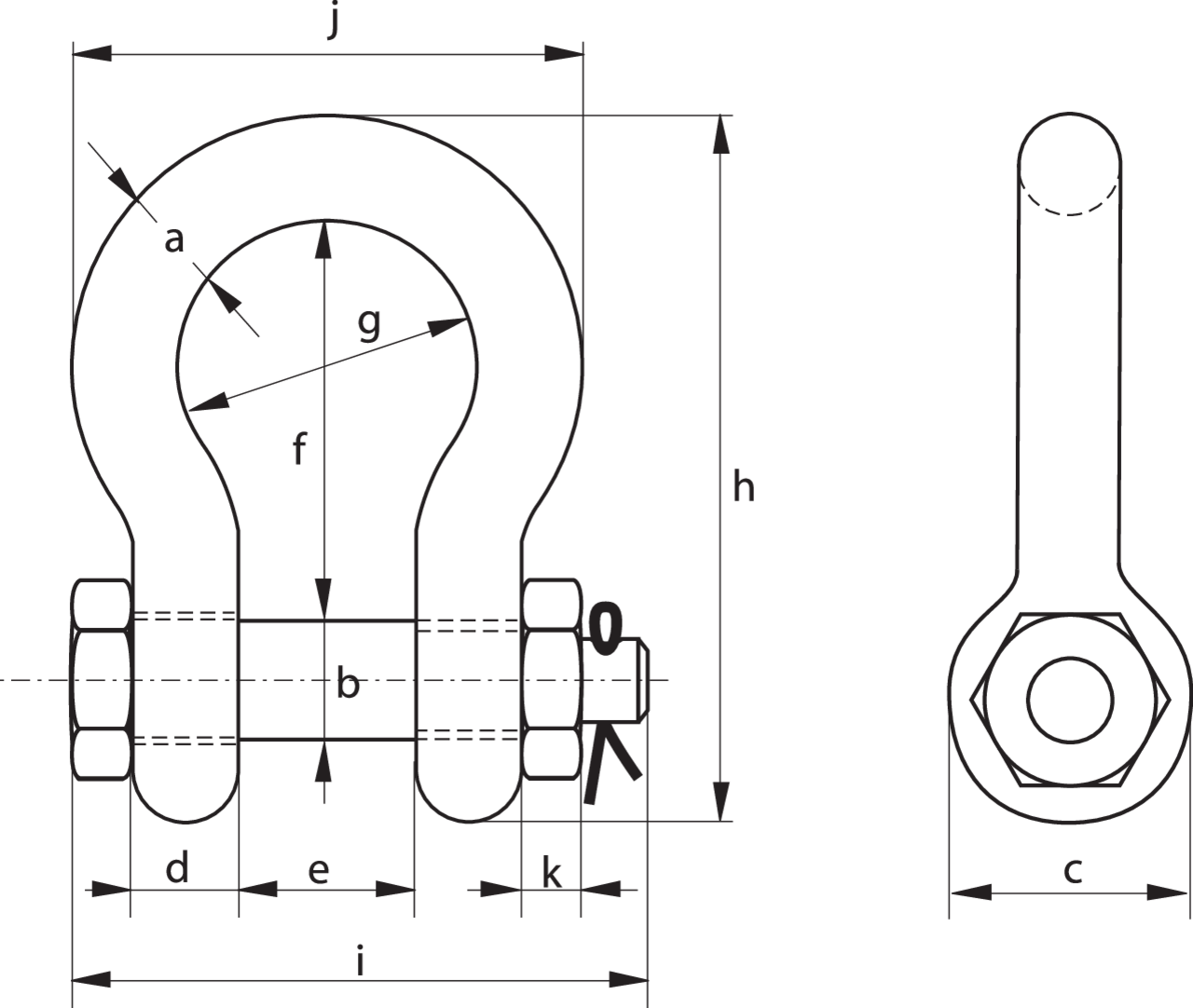

A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g h (mm) i (mm) j (mm) k (mm) Kaal
kg
11.31GPGHMB06 0,5 7 8 16,5 7 12 29 20 48,5 42 34 4 0,06
11.31GPGHMB08 0,75 9 10 20 9 13,5 32 22 56 50 40 5 0,11
11.31GPGHMB10 1 10 11 22,5 10 17 36,5 26 63,5 60 46 8 0,16
11.31GPGHMB11 1,5 11 13 26,5 11 19 43 29 74 67 51 11 0,22
11.31GPGHMB13 2 13,5 16 34 13 22 51 32 89 82 58 13 0,42
11.31GPGHMB16 3,25 16 19 40 16 27 64 43 110 98 75 17 0,74
11.31GPGHMB19 4,75 19 22 46 19 31 76 51 129 114 89 19 1,18
11.31GPGHMB22 6,5 22 25 52 22 36 83 58 144 130 102 22 1,77
11.31GPGHMB25 8,5 25 28 59 25 43 95 68 164 150 118 25 2,58
11.31GPGHMB28 9,5 28 32 66 28 47 108 75 185 166 131 27 3,66
11.31GPGHMB32 12 32 35 72 32 51 115 83 201 178 147 30 4,91
11.31GPGHMB35 13,5 35 38 80 35 57 133 92 227 197 162 33 6,54
11.31GPGHMB38 17 38 42 88 38 60 146 99 249 202 175 19 8,19
11.31GPGHMB45 25 45 50 103 45 74 178 126 300 249 216 23 14,22
11.31GPGHMB50 35 50 57 111 50 83 197 138 331 269 238 26 19,85
11.31GPGHMB57 42,5 57 65 130 57 95 222 160 377 301 274 29 28,33
11.31GPGHMB65 55 65 70 145 65 105 260 180 433 330 310 32 39,59
11.31GPGHMB75 85 75 83 162 73 127 329 190 527 380 340 39 62
