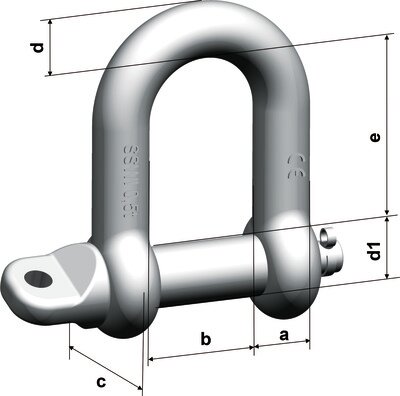

Üldine: Stainless steel safety shackle, drop-forged, stamped, tested, with added suspension bolt useable as end fitting in chain- and wire rope slings and pump chains for lifting of submersible pumps and breathers, with maximum safety, also under vibration (not directly mountable onto chain).
S = with splint pin for safety.
C = bolt adhesive for safety.



  • Materjal: Roostevaba teras.
  • Märgistus: Artikkel ja seerianumber.
  • Ohutustegur: 6:1.
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
tonn
C (mm) A (mm) D (mm) D1 (mm) D2 (mm) Kaal
kg
CAD
11.3987036 SSWI 0,5 t-S 0,5 33 18 8 9 18 0,07
11.3987039 SSWI 1,25 t-S 1,25 40 25 12 13 25 0,23
11.3987041 SSWI 2 t-S 2 60 32 16 17 32 0,53
11.3987043 SSWI 3,2 t-S 3,2 78 41 19 21 47 1,03
11.3987045 SSWI 5 t-S 5 109 56 25 29 60 2,46
11.3917084 SSWI 26-C 13 152 76 34 38 75 5,8
