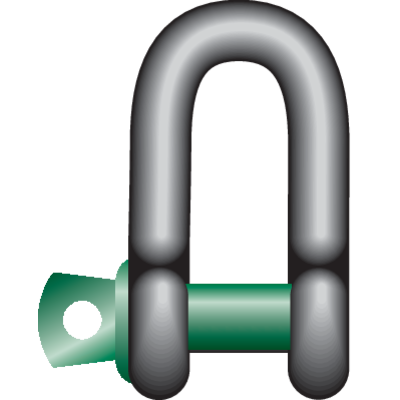

Green Pin tõsteseekel G-4151

- General: Dee shackle with screw collar pin.


- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, Grade A.
- Temperature range: -40°C up to +200°C.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 mate

Näita rohkem

Tootenumber:
- General: Dee shackle with screw collar pin.


- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, Grade A.
- Temperature range: -40°C up to +200°C.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test
certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.
  • Materjal: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Märgistus: Vastavalt standardile, CE-tähisega
  • Pinnakate: Hot dipped galvanized.
  • Standard: EN 13889
  • Ohutustegur: 6:1
  • Klass: 6
