General: Stainless eye terminal for self assembly.

  • Material: Stainless steel AISI 316.
  • Finish: High polished.
Select a row from the table below, then click the add to quote button

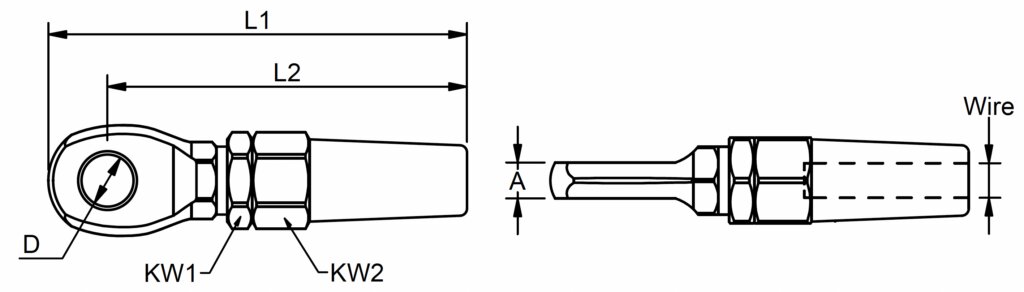

Art No MBL (ton) A (mm) D1 mm L1 (mm) L2 (mm) L3 (mm) Wire Ø (inch) KW1 (mm) KW2 (mm) Wire Ø (mm) Weight
kg/100pcs
10.07821903 0,75 5,5 6,3 58 50 26,5 1/18" 10 12 3 4
10.07821904 1,5 7 8,3 68 58 31,0 5/35" 13 14 4 7,3
10.07821905 2,18 8 10,3 81 70 37,0 - 14 16 5 9,8
10.07821906 3,7 9 12,3 97 83 45,0 1/4" 17 19 6 15
10.07821907 4,7 9 12,3 105 89 50,5 9/32" 18 21 7 21,2
10.07821908 5,6 10 14,3 114 97,5 52,5 5/16" 19 24 8 28,1
10.07821910 8,3 13 16,3 135 116 65,0 - 24 27 10 46
10.07821912 12 15 19,5 160 137 71,5 - 27 32 12 72
10.07821914 14 18 22 185 160 85,0 - 30 36 14 110
10.07821916 23 20 25 197 170 98,0 - 32 41 16 160
All breakloads are determined by the wedges (jaws) and the eye (D2)
