• Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Note: Application in combination with link "CLO".
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

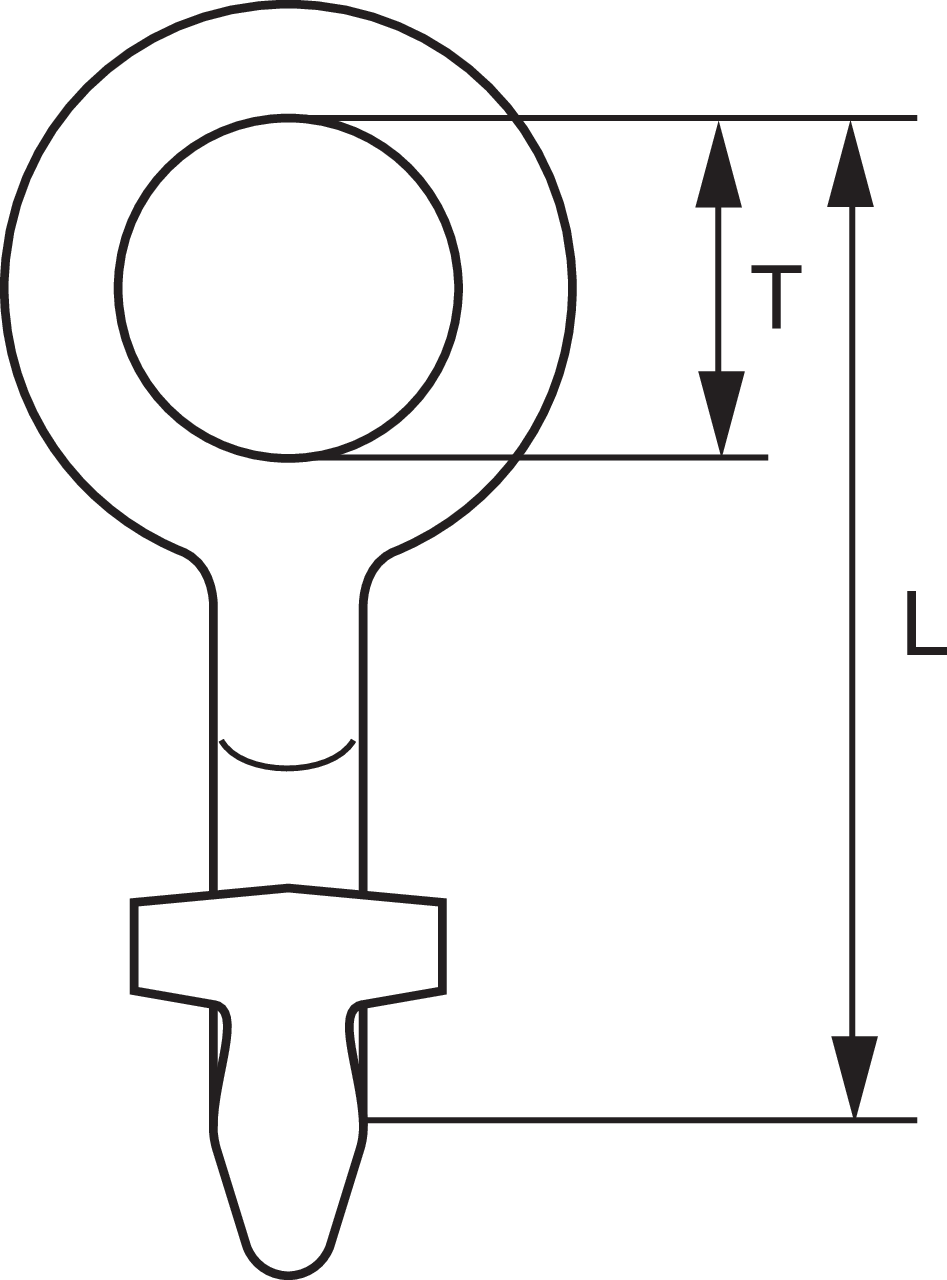

Part Code Code WLL
ton
For chain gr 8 Ø
mm
L
mm
T
mm
Weight
kg
CAD
11.25A161J/1 CH-7/8-8 2 7-8 90 30 0,35
11.25A162J/1 CH-10-8 3,15 10 114 38,5 0,75
11.25A163J CH-13-8 5,3 13 146 52 1,4
11.25A164J CH-16-8 8 16 180 64 3,2
