General:
Foundry Hooks are hooks with a bigger opening without safety latch often used in foundries.  Always verify if hooks without safety latch are allowed for your application.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 380°C
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

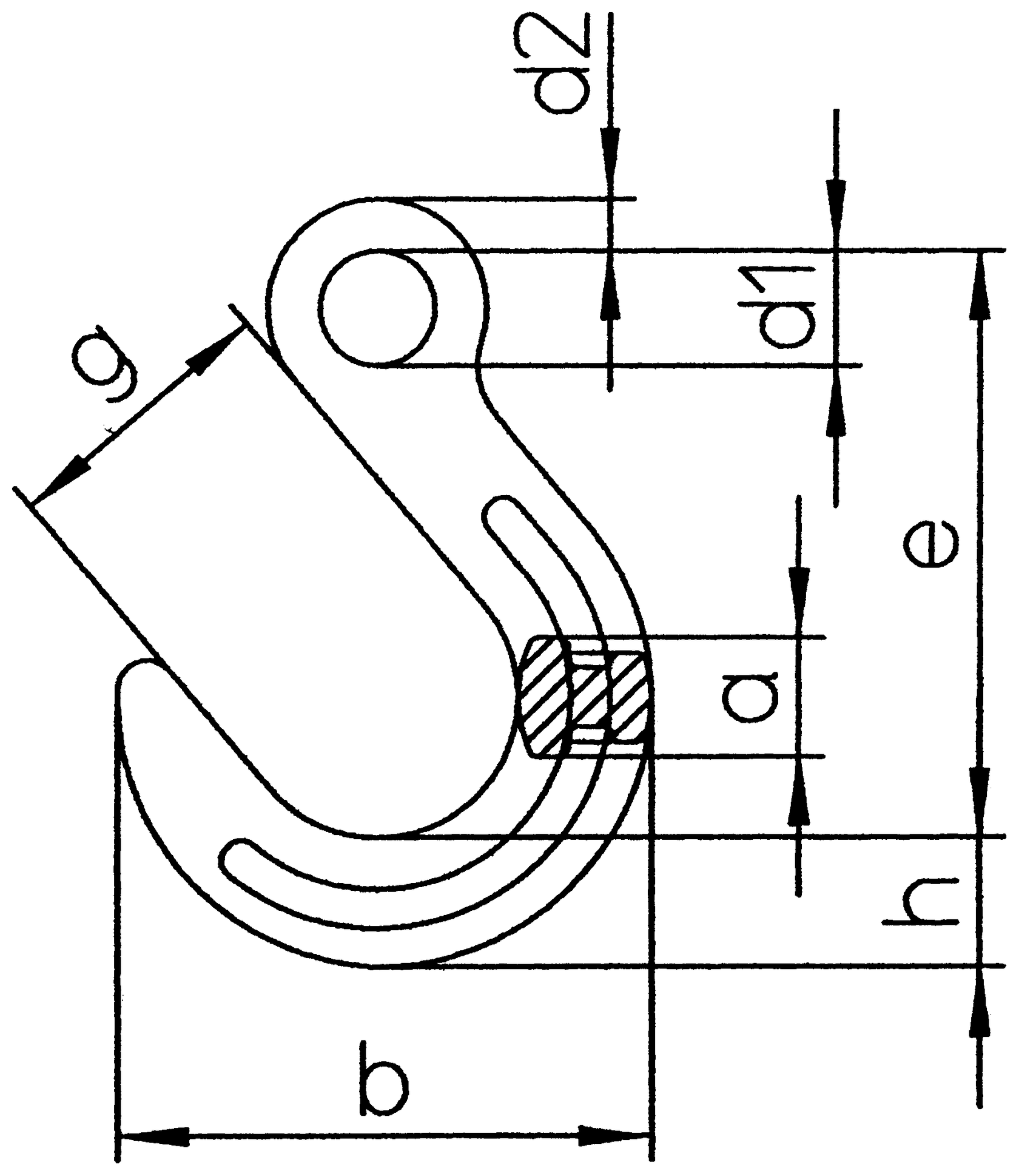

Код продукции Code WLL
ton
for chain ø
mm
A
mm
B
mm
D1
mm
D2
mm
e
mm
g h
mm
Weight
kg
CAD
11.1169963 GH/S-7/8 2,5 7-8 25 118 24 11 131 64 29 0,92
11.1169960 GH/S-10 4 10 32 143 31 14 158 76 35 1,8
11.1169961 GH/S-13 6,7 13 40 170 39 17 190 89 42 2,8
11.1169962 GH/S-16 10 16 46 200 47 22 224 102 50 5
11.1169959 GH/S-19/20 16 19-20 54 231 56 28 260 114 61 7,6
