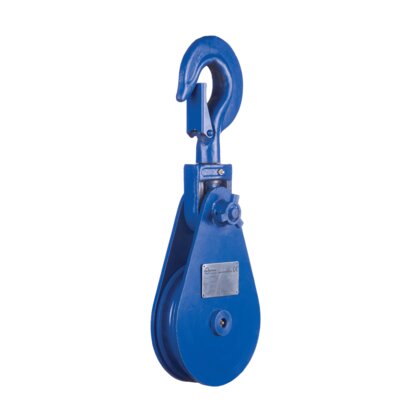

Ropeblock

General: Intended for general lifting purposes. Can also be used for pulling. WLL in table applies for load on head fitting/hook.
Design: Snatch block type with covering side plates. Provided with swiveling hook with latch. Bronze bushed sheave in 2-4 tons blocks and roller bearings in lager sizes. Grease fitting in the shaft and cross head.

  • Material: Steel.
  • Marking: Type, WLL and wire rope diameter.
  • Finish: Blue painted.
    Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.
    Код товара WLL
    ton
    Diameter
    mm
    Вес
    kg
    16.15121030214 2 7-9 4
    16.15121040414 4 10-12 6
    16.15121060414 4 16-19 14
    16.15121080814 8 19-22 16
    16.15121101014 10 24-26 38
    16.15121121214 12 24-26 56
    16.15121081514 15 22-24 24
    16.15121121514 15 24-26 65
    16.15121142214 22 28-32 90
    16.15121123014 30 28-30 125
    16.15121163014 30 32-35 135
    16.15121143514 35 32-35 130
    16.15121245014 50 46-50 418
