pewag

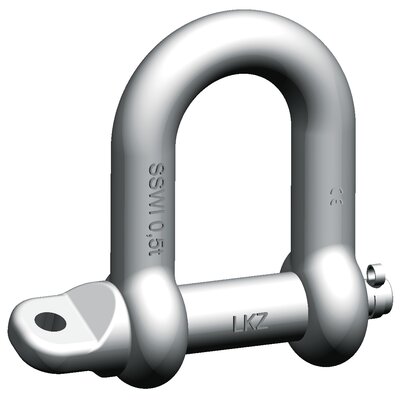

Stainless steel safety shackle, drop-forged, stamped, tested, with added suspension bolt useable as end fitting in chain- and wire rope slings and pump chains for lifting of submersible pumps and breathers, with maximum safety, also under vibration (not directly mountable onto chain).

  • Material: Stainless steel.
  • Marking: Article and batch code.
  • Safety factor: 6:1
  • Класс: 6
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.

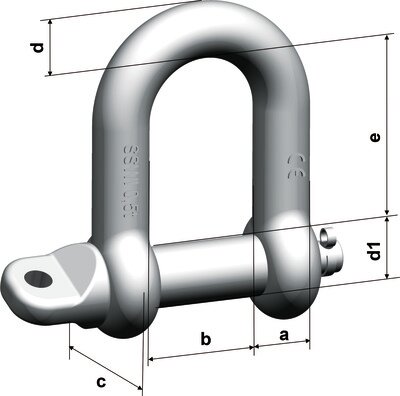

Код товара Код WLL
ton
a
mm
b
mm
c
mm
d
mm
d1
mm
e
mm
Вес
kg
CAD
11.3987036 SSWI 0,5 t-S 0,5 10 21 22 10 11 41 0,14 -
11.3962074 SSWI 0,63 t-S 0,63 8 21 18 8 9 35 0,08 -
11.3981731 SSWI 0,63 t-S-W 0,63 12 26 25 12 13 41 0,22 -
11.3962086 SSWI 0,9 t-S 0,9 8 18 18 8 9 33 0,07 -
11.3987039 SSWI 1,25 t-S 1,25 18 42 46 18 21 78 1 -
11.3962090 SSWI 1,6 t-S 1,6 15 36 32 15 17 62 0,52 -

Other sizes and special models available on request!
