pewag

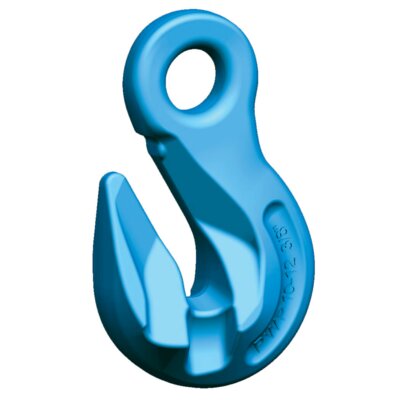

Application for shortening of chain and chain slings that must not tighten.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Класс: 12
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.

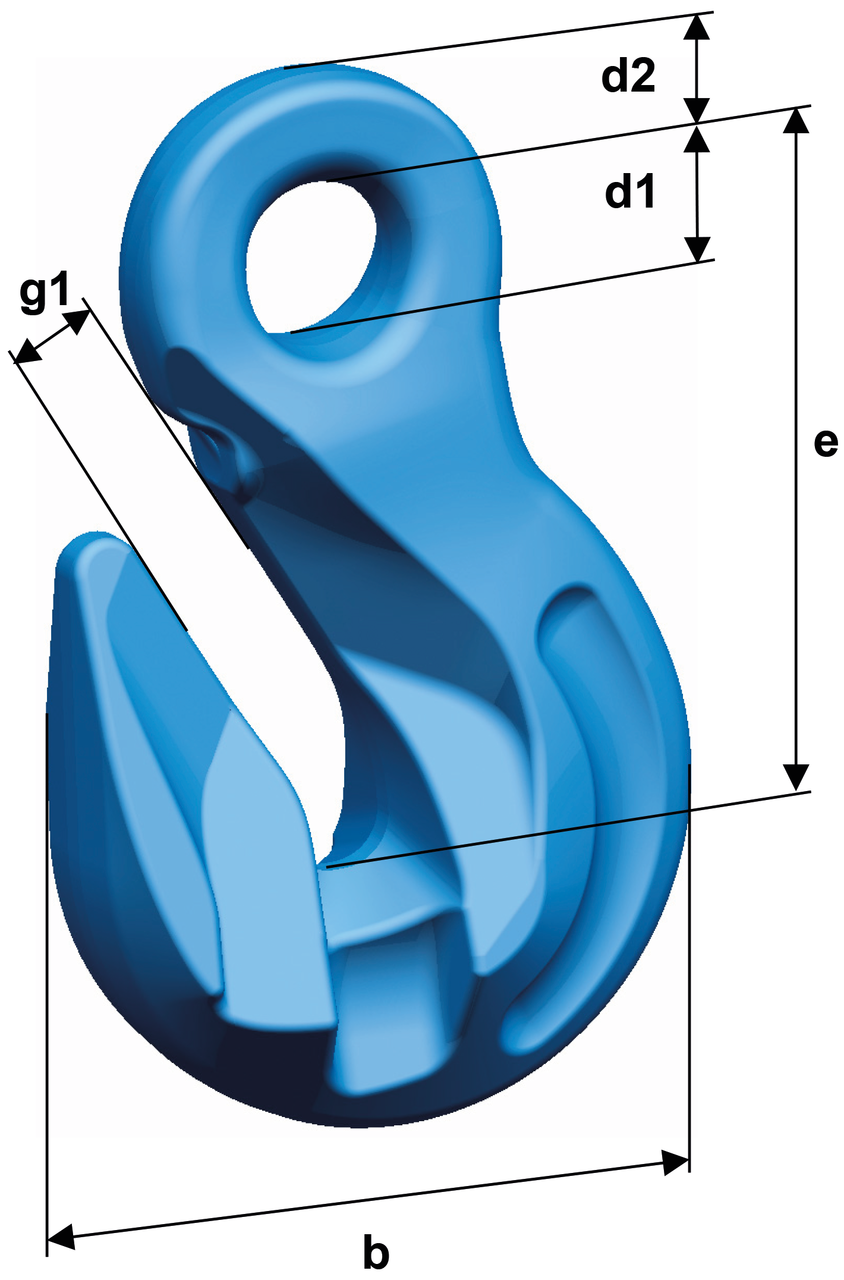

Код товара Код WLL
ton
For chain Ø
mm
b
mm
d1
mm
d2
mm
e
mm
g1
mm
Вес
kg
CAD
11.2288007 PWP 7/8 3 7-8 63 18 11 68 10 0,51 -
11.2288009 PWP 10 5 10 81 22 14 88 13 1,04 -
11.2288011 PWP 13 8 13 103 26 18 110 17 2,19 -
