Crosby
Design: Can be furnished with bronze bushings or roller bearings. Opening feature permits insertion of rope while block is suspended from gin-pole. The blocks have exclusive bolt retaining spring to assure no lost bolts. Pressure lube fittings.



  • Materjal: Forged steel swivel tees, yokes and shackles.
  • Märgistus: CE-tähisega, Type, WLL, wire and sheave dia.
  • Pinnakate: Blue painted.
  • Ohutustegur: 4:1
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule

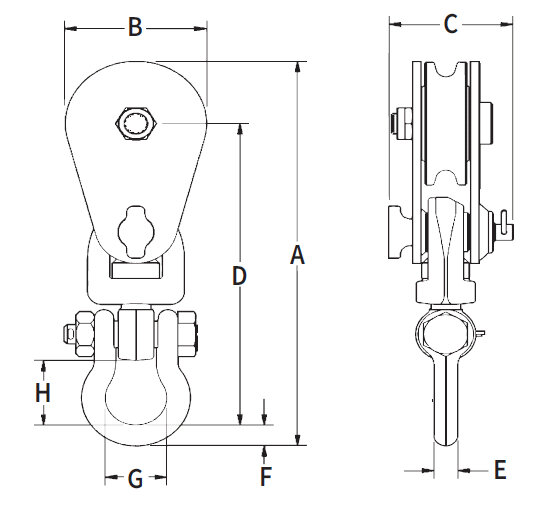

Tootekood Kood WLL
tonn
Ratta Ø
mm
Laagri kood Trossi Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Kaal
kg
CAD
16.15109037 419 w/eye 2 76 BB 8-10 220 76 67 168 14 14 35 35 1,8
16.15109091 419 2 76 BB 8-10 235 76 67 185 13 13 34 40 2,3
16.15109064 419 4 114 BB 10-13 340 108 79 268 16 18 43 51 5,4
16.15109126 419 8 152 BB 16-19 481 152 106 373 32 32 76 88 12,7
16.15109153 419 8 152 RB 16-19 481 152 106 373 32 32 76 88 12,7
16.15109224 419 8 203 BB 16-19 533 206 106 398 32 32 76 88 15
16.15109251 419 8 203 RB 16-19 533 206 106 398 32 32 76 88 15
16.15109322 419 8 254 BB 16-19 586 257 106 425 32 32 76 88 19,5
16.15109359 419 8 254 RB 16-19 586 257 106 425 32 32 76 88 19,5
16.15202961 419 8 305 BB 16-19 657 308 106 471 32 32 76 88 24,9
16.15169347 419 8 305 RB 16-19 657 308 106 471 32 32 76 88 24,9
16.15109420 419 8 356 BB 16-19 695 359 106 484 32 32 76 88 30,4
16.15109457 419 8 356 RB 16-19 695 359 106 484 32 32 76 88 30,4
