pewag

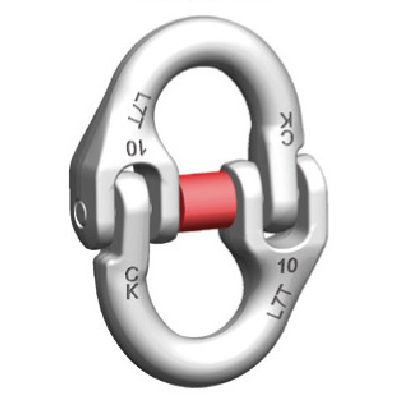

General: Stainless steel connection link between master link and chain, chain and hook. Drop-forged. Serviceable up to max. 400°C.

  • Materjal: AISI 316 TI.
  • Pinnakate: Pickled and blasted.
  • Standard: EN 1677-1
  • Ohutustegur: 4:1.
  • Klass: 6
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
tonn
For chain gr 5 Ø (mm) A (mm) B (mm) C (mm) D (mm) Kaal
kg
CAD
11.0992142 CWI 5 0,5 5 13 34 7 36 0,05
11.0992143 CWI 7 1 7 17 51 9 54 0,12
11.0992144 CWI 10 2 10 25 70 13 73 0,33
11.0992145 CWI 13 3 13 29 86 17 92 0,7
11.0992146 CWI 16 5 16 37 105 21 104 1,22

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
