Green Pin
- General: Bow shackles with screw pin.


- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A.
- Temperature range: -40°C - +200°C.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.
  • Materjal: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Pinnakate: Hot dipped galvanized.
  • Standard: EN 13889
  • Ohutustegur: 6:1
  • Klass: 6
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

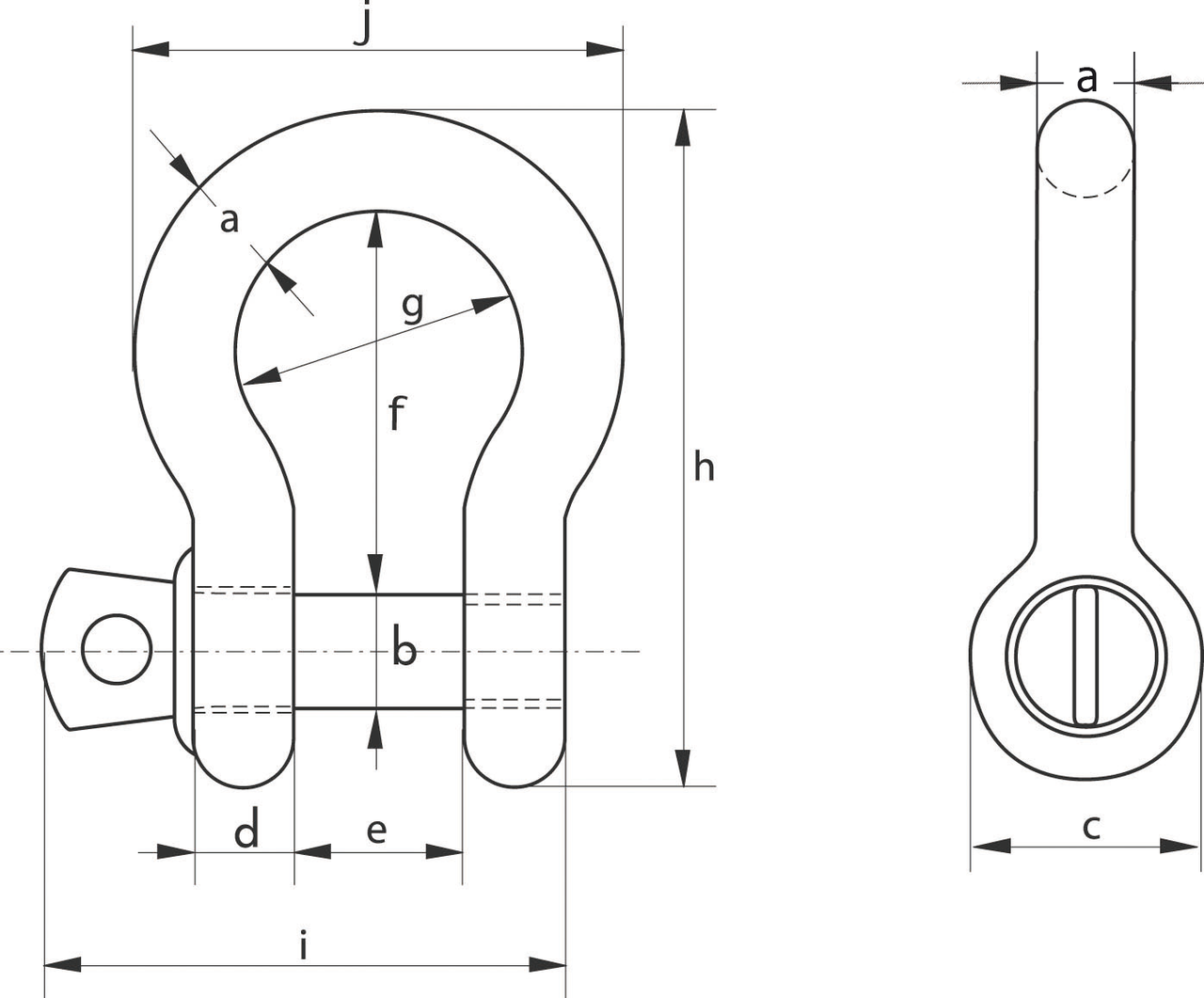

A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g h (mm) i (mm) j (mm) Kaal
kg
CAD
11.31GPGHBB05 0,33 5 6 12 5 9,5 22 16 36 29,5 26 0,02
11.31GPGHBB06 0,5 7 8 16,5 7 12 29 20 48,5 38 34 0,05
11.31GPGHBB08 0,75 9 10 20 9 13,5 32 22 56 46,5 40 0,1
11.31GPGHBB10 1 10 11 22,5 10 17 36,5 26 63,5 54 46 0,14
11.31GPGHBB11 1,5 11 13 26,5 11 19 43 29 74 59,5 51 0,19
11.31GPGHBB13 2 13,5 16 34 13 22 51 32 89 73 58 0,36
11.31GPGHBB16 3,25 16 19 40 16 27 64 43 110 89 75 0,63
11.31GPGHBB19 4,75 19 22 46 19 31 76 51 129 103 89 1,01
11.31GPGHBB22 6,5 22 25 52 22 36 83 58 144 119 102 1,5
11.31GPGHBB25 8,5 25 28 59 25 43 95 68 164 137 118 2,21
11.31GPGHBB28 9,5 28 32 66 28 47 108 75 185 153 131 3,16
11.31GPGHBB32 12 32 35 72 32 51 115 83 201 170 147 4,31
11.31GPGHBB35 13,5 35 38 80 35 57 133 92 227 186 162 5,55
11.31GPGHBB38 17 38 42 88 38 60 146 99 249 203 175 7,43
11.31GPGHBB45 25 45 50 103 45 74 178 126 300 243 216 12,84
11.31GPGHBB50 35 50 57 111 50 83 197 138 331 272 238 18,15
11.31GPGHBB57 42,5 57 65 130 57 95 222 160 377 310 274 26,29
11.31GPGHBB65 55 65 70 145 65 105 260 180 433 344 310 37,6

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
