Blue Wave
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood MBL
ton

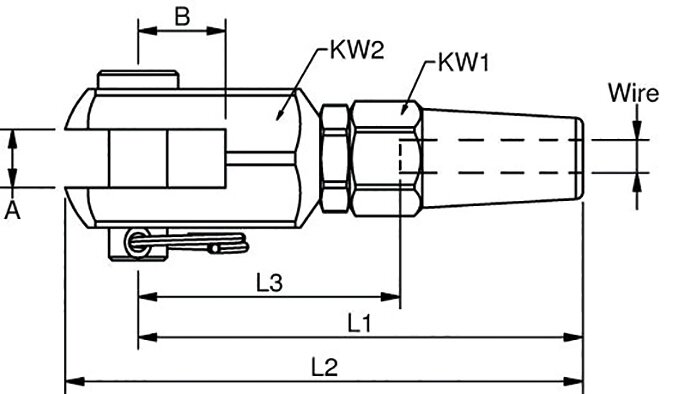

Poldi suurus Trossi Ø (inch) KW1 (mm) KW2 (mm) Trossi Ø (mm) A (mm) B (mm) L1 (mm) L2 (mm) L3 (mm) L4 (mm) Kaal
kg/100pcs
CAD
10.07840603 0,75 6 1/8" 12 14 3 6 11 55 63 29 8 5,5
10.07840804 1,5 8 5/32” 14 19 4 8 12 62 73 35 8 7,3
10.07841005 2,18 10 - 16 22 5 10 15 72 83 42 10 15
10.07841206 3,7 12 1/4” 19 27 6 12 18 82 95 48 12 23
10.07841207 4,7 12 9/32”” 21 29 7 12 18 102 115 55 13 29
10.07841408 5,6 14 5/16” 24 30 8 14 21 103 118 58 14 38
10.07841610 8,3 16 - 27 36 10 16 24 117 135 70 16 63
10.07841912 12 19 - 32 42 12 18 26 142 162 75 16 97
10.07842214 14 22 - 36 46 14 21 30 162 191 88 19 135
10.07842516 23 25 - 41 55 16 23 35 184 217 102 22 215
All breakloads are determined by the wedges (jaws) and the clevis pin.

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.
