Crosby

The IPSTARTEC11 also has the following advantages:
- Extra resistant paint
- All sizes equipped with RFID
- 10-year warranty





  • Omadused: The IPSTARTEC11 beam clamp has been specially developed for lifting with the body in vertical position, controlled tilting, transportation and stacking of steel “H” and “I” profiles. By plac
  • Materjal: Alloy steel.
  • Märgistus: Vastavalt standardile, Logo, WLL, jaw opening, ID serial number, proof test date and RFID chip.
  • Pinnakate: : Painted.
  • Standard: EN 13155
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

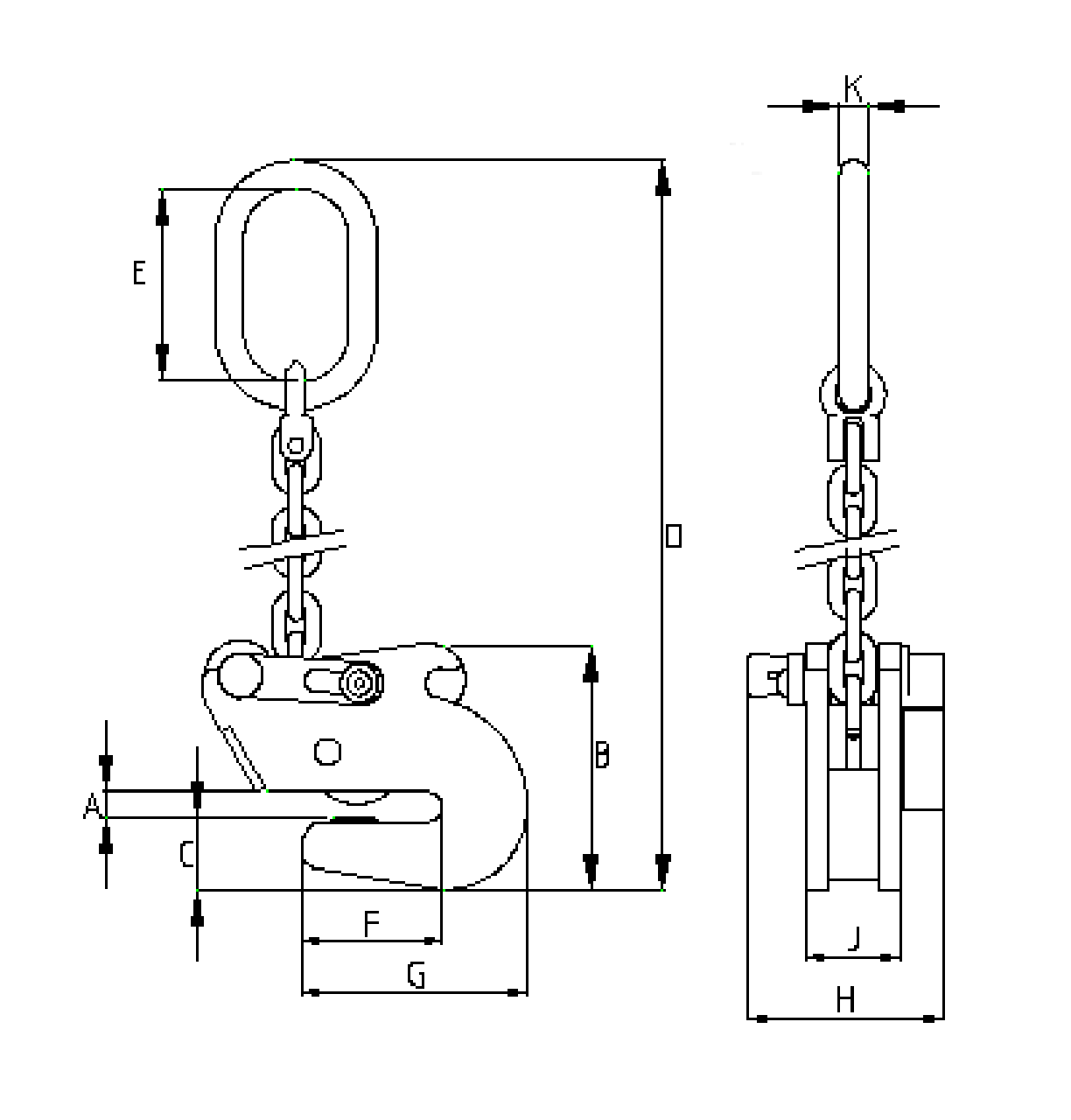

I P Model. Lõug B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) Kaal
kg
CAD
16.022701812 1,5 1.5-IPSTARTEC11 6-12 140 39 575 110 81 129 54 126 16 6,6
16.022701822 2,5 2.5-IPSTARTEC11 6-20 210 55 725 135 115 182 74 140 18 14,5

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
