Wirerope HD9K
Product information
Typical applications: When an extremely high MBL is required for a multipart reeving hoist system: boom hoist, trolley for container cranes, luffing for mobile and crawler cranes and big height overhead cranes and electric hoists with a minimum of 2 or 3 falls.

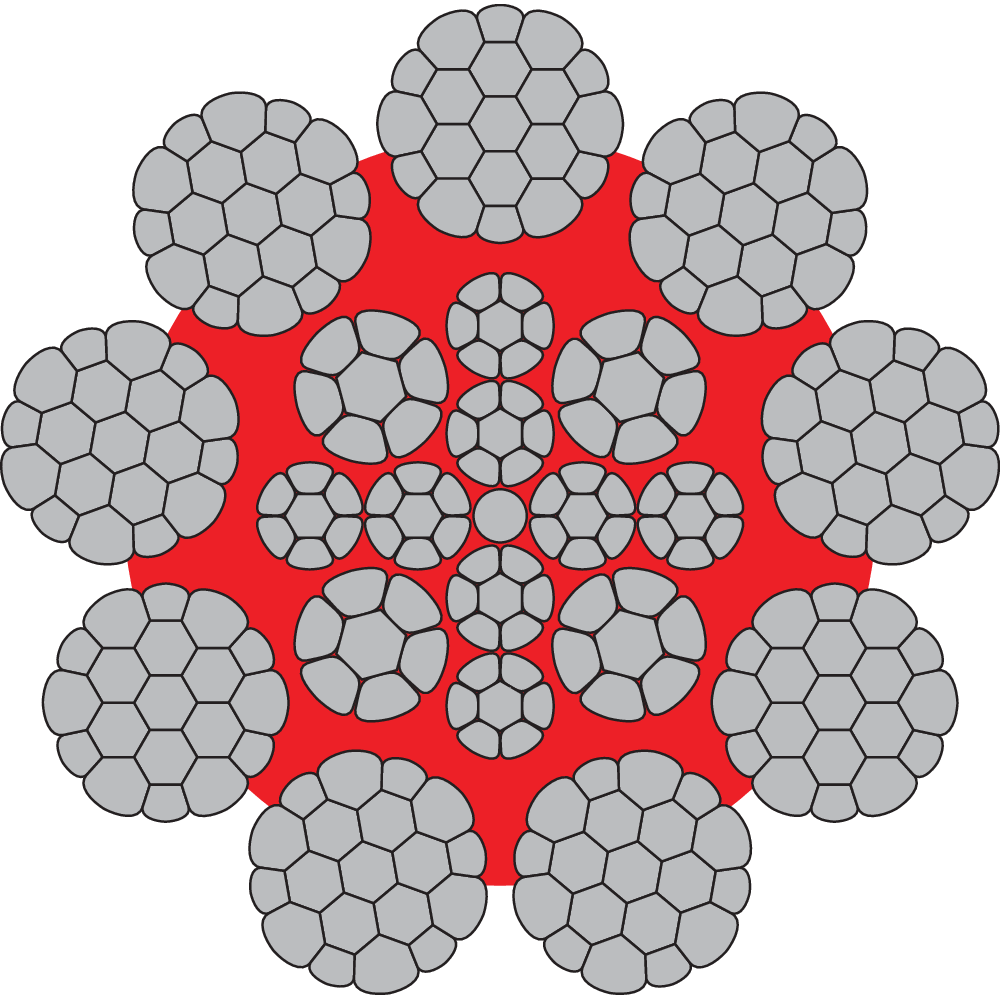

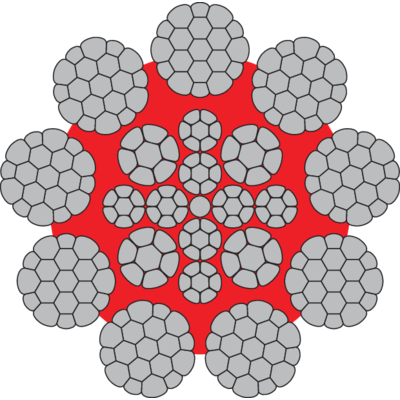

Is available also with platic core (PI). A plastic layer between the steel core and the outer strands, gives the rope a high structural stability, avoiding internal rope destruction and protecting the core against corrosive environment. Recommended for all marine and offshore applications and other severe working environmental conditions.
Standard: EN 12385-4
ISO 4309 Rope Category No: 9x16 RCN.06, 9x19 RCN.07, 9x26 RCN.10

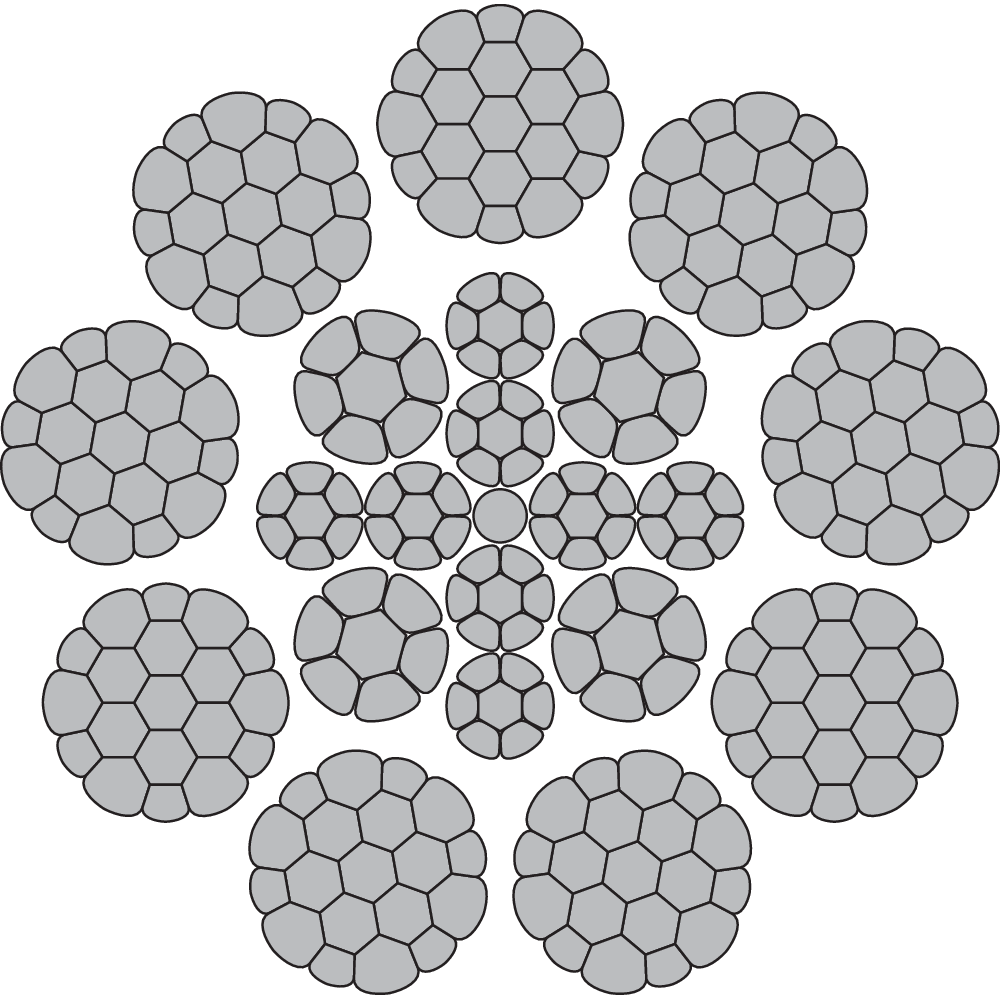

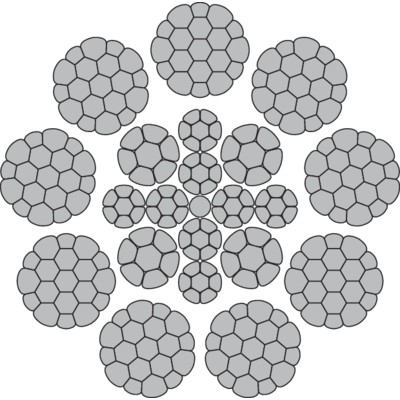

- Rope construction: 9 outer compacted strands closed in the opposite lay off the inner core strands leading the HD9K to have a low torque for a better stability of the sheave blocks.
- Fill factor: 0.7
- RCN: 06
-
Winch rope
-
Overhead cranes
-
Tower crane
-
Container crane
-
Mobile port crane
-
Offshore crane
-
Loading crane
-
Crawler crane
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1960, 2160 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope features internal plastic filling, which improves lubrication retention, reduces internal wire friction, and enhances service life under dynamic loading conditions.
