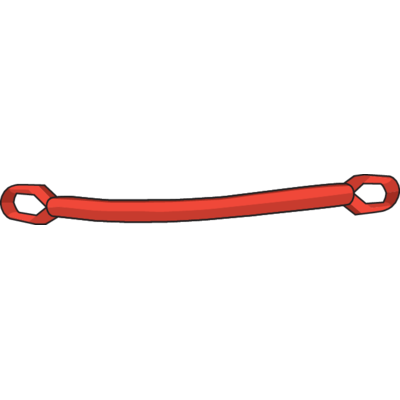

Design: Round sling covered with extra protection sleeve and provided with strengthen eye in each end.
Stretch with working load: 2-3%.

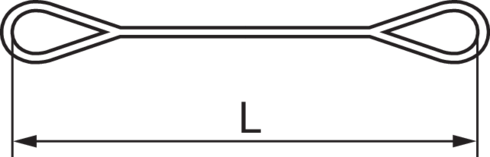

Length tolerance: Nominal length ±2%.
- Material: Polyester. Resistant to most acids but not strong alkalizes.
- Marking: According to standard, The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
- Temperature range: app. -40° - +100°C.
- Standard: EN 1492-2
- Safety factor: 7:1
Roundsling polyester
EN 1492-1
Safety Factor 7:1 | Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |  |  |  | |||
| 0°−45° | 45°−60° | |||||
| Color | Working load limit (WLL) in tons | |||||
| Purple | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| Green | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| Yellow | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| Grey | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| Red | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| Brown | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| Blue | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| Orange | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| Orange | 12,0 | 24,0 | 9,6 | 16,8 | 12,00 | |
| Orange | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| Orange | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Orange | 25,0 | 50,0 | 20,0 | 35,0 | 25,0 | |
| Orange | 30,0 | 60,0 | 24,0 | 42,0 | 30,0 | |
| Orange | 35,0 | 70,0 | 28,0 | 49,0 | 35,0 | |
| Orange | 40,0 | 80,0 | 32,0 | 56,0 | 40,0 | |
| Orange | 50,0 | 100,0 | 40,0 | 70,0 | 50,0 | |
| Orange | 60,0 | 120,0 | 48,0 | 84,0 | 60,0 | |
| Orange | 70,0 | 140,0 | 56,0 | 98,0 | 70,0 | |
| Orange | 80,0 | 160,0 | 64,0 | 112,0 | 80,0 | |
| Orange | 85,0 | 170,0 | 68,0 | 119,0 | 85,0 | |
| Orange | 90,0 | 180,0 | 72,0 | 126,0 | 90,0 | |
| Orange | 100,0 | 200,0 | 80,0 | 140,0 | 100,0 | |
| Orange | 125,0 | 250,0 | 100,0 | 175,0 | 125,0 | |
| Orange | 150,0 | 300,0 | 120,0 | 210,0 | 150,0 | |
| Orange | 175,0 | 350,0 | 140,0 | 245,0 | 175,0 | |
| Orange | 180,0 | 360,0 | 144,0 | 252,0 | 180,0 | |
| Orange | 200,0 | 400,0 | 160,0 | 280,0 | 200,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
