Haklift

Hook is equipped with spring loaded safety latch.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

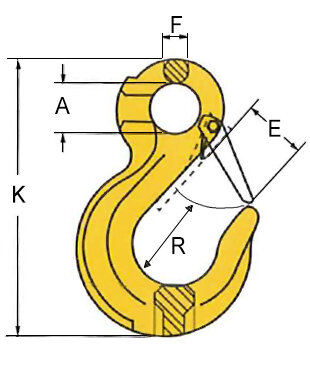

Part Code WLL
ton
For chain dia.
mm
K
mm
E
mm
F
mm
R
mm
A
mm
Weight
kg
11.1025165 1,12 6 108 24 9 21 20 0,3
11.1025166 2 7/8 133 30 11 26 25 0,4
11.1025167 3,15 10 167 34 15 39 38 0,9
11.1025168 5,3 13 213 39 19 54 43 1,7
11.1025169 8 16 255 46 23 64 50 3,2
11.1060327 12,5 20 305 40 24 80 62 5,8
11.1060328 15 22 348 71 32 80 62 8,5
11.1060691 31,5 32 480 102 37 112 68 17
