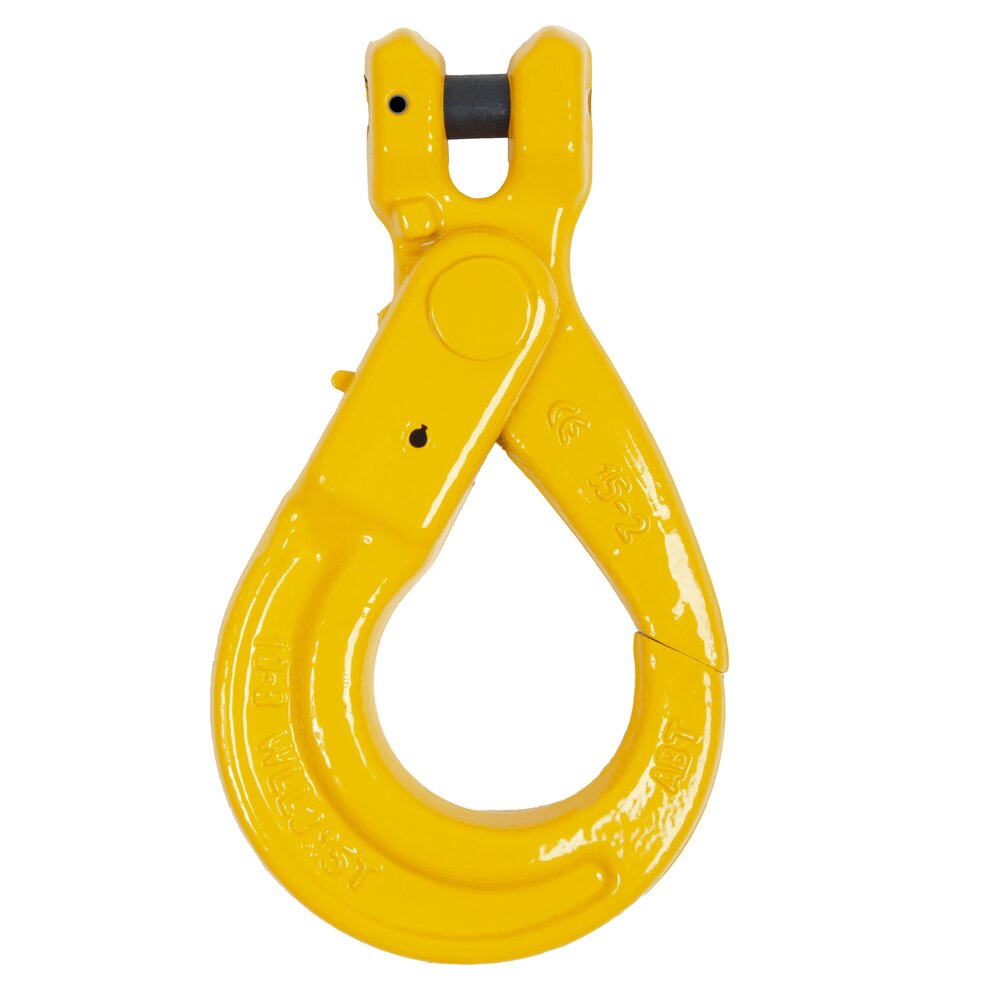

Clevis self-locking hook, grade 80

The chain is attached to the hook with clevis without a connecting link. The hook locks automatically when lifting starts.



Show more

Product number:

The chain is attached to the hook with clevis without a connecting link. The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-3
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8

SPARE PARTS

Spare part (product code) Description Suitable for ABT hook (product code/-s) Note
VAKVO6S Spare part set 6 mm | Incl. trigger, spring, pin VAK6, VAKH6, VAKL6, VAKA106, VAKAH106, VAKAL106, VAKAL1006KL moribund model*
VAKVO78S Spare part set 7/8 mm | Incl. trigger, spring, pin VAK78, VAKH78, VAKL78, VAKA1078, VAKAH1078, VAKAL1078, VAKAL1078KL moribund model*
VAKVO10S Spare part set 10 mm | Incl. trigger, spring, pin VAK10, VAKH10, VAKL10, VAKA1010, VAKAH1010, VAKAL1010, VAKAL1010KL moribund model*
VAKVO13S Spare part set 13 mm | Incl. trigger, spring, pin VAK13, VAKH13, VAKL13, VAKA1013, VAKAH1013, VAKAL1013, VAKAL1013KL moribund model*
VAKVO16S Spare part set 16 mm | Incl. trigger, spring, pin VAK16, VAKH16, VAKL16, VAKA1016, VAKAH1016, VAKAL1016, VAKAL1016KL
VAKVO20S Spare part set 20 mm | Incl. trigger, spring, pin VAK20, VAKH20, VAKL20, VAKA1020, VAKAH1020, VAKAL1020, VAKAL1020KL
VAKVO22S Spare part set 22 mm | Incl. trigger, spring, pin VAK22, VAKH22, VAKA1022, VAKAL1022KL
VAKVO26S Spare part set 26 mm | Incl. trigger, spring, pin VAK26, VAKAL1026KL
VAKVO32S Spare part set 32 mm | Incl. trigger, spring, pin VAK32

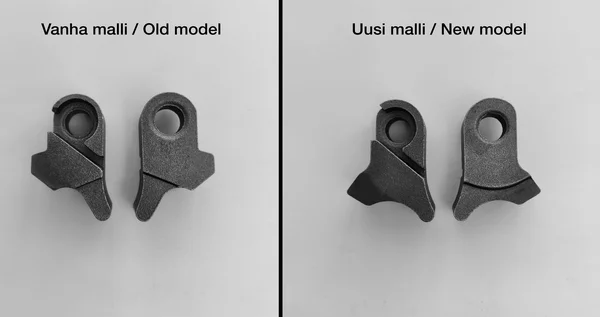

VAKVO6S2 Spare part set 6 mm | Incl. triggers (new and old model), spring, pin VAK6, VAKH6, VAKL6, VAKA106, VAKAH106, VAKAL106, VAKAL1006KL *substitutive model
VAKVO78S2 Spare part set 7/8 mm | Incl. triggers (new and old model), spring, pin VAK78, VAKH78, VAKL78, VAKA1078, VAKAH1078, VAKAL1078, VAKAL1078KL *substitutive model
VAKVO10S2 Spare part set 10 mm | Incl. triggers (new and old model), spring, pin VAK10, VAKH10, VAKL10, VAKA1010, VAKAH1010, VAKAL1010, VAKAL1010KL *substitutive model
VAKVO13S2 Spare part set 13 mm | Incl. triggers (new and old model), spring, pin VAK13, VAKH13, VAKL13, VAKA1013, VAKAH1013, VAKAL1013, VAKAL1013KL *substitutive model
