Electric chain hoist with hook suspension

General:
The KITO ER2 Electric Chain Hoists are durable, safe and easy to use hoists. It has a top hook or overhead mounting suspension, aluminium die-cast body, electromagnetic brake and a canvas chain container.
It lifts from 10 tons up to 20 tons.

Standard configuration:

  • 400 V/50 Hz
  • Frequency inverter for 2 lifting speeds
  • CH-Meter: operating hours/number of starts
  • Ergonomic push button control
  • Upper-lower limit switch
  • Nickel-plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
  • Thermal protector
  • Carbon friction clutch


Options:

  • 500 V/Contactor control
  • 230 V/50 Hz/60 Hz, 3 phase
  • Rubber bumpers for motorized trolleys
  • Additional mechanical brake
  • Electrical overload limiter
  • Acoustic overload signal
  • Radio remote control
  • Variable speed control
  • Level limit switch
  • Steel chain container
  • Trolley versions: motorized, geared and plain

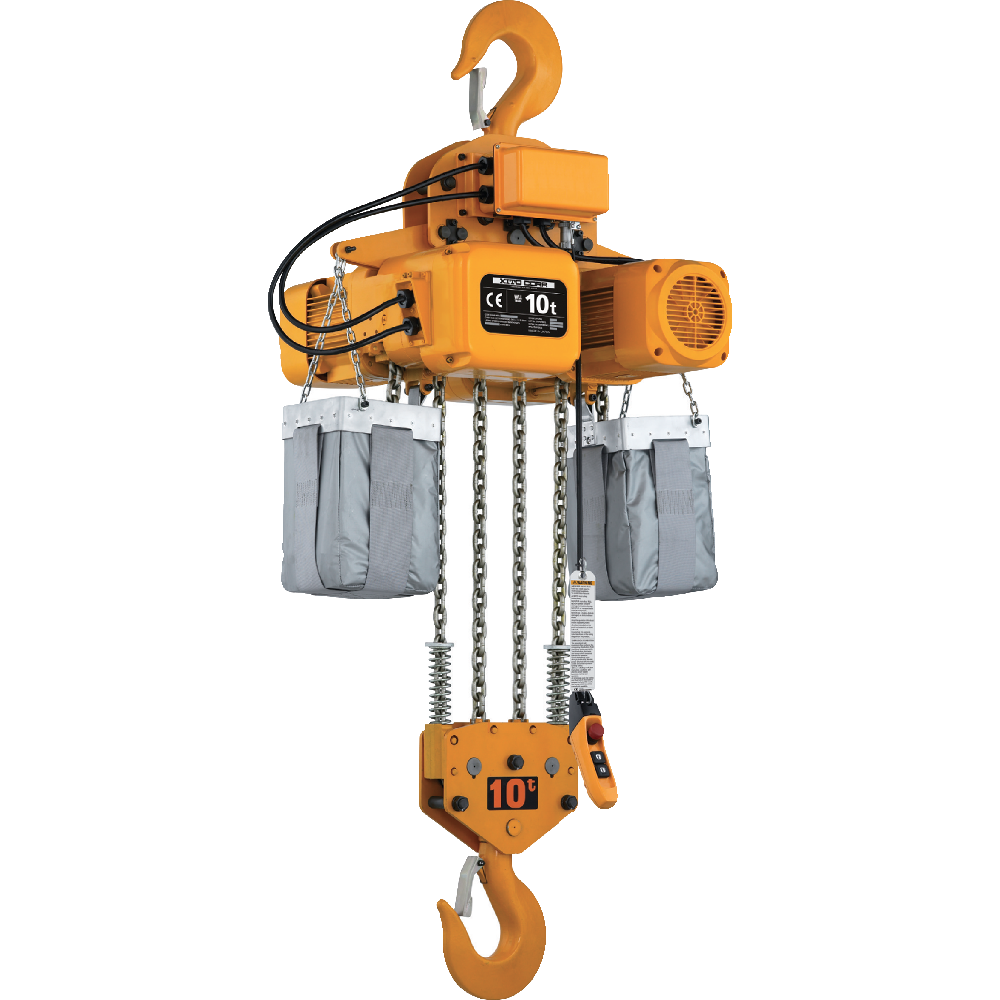

ER2-Large capacity dual speed
ER2_Large_CE[1] [Konverteret]
Select a row from the table below, then click the add to quote button
Code WLL
ton
Test load tons Load chain Ø
mm
Chain falls Lifting motor Output (kW) Lifting motor Rating (%ED) Class ISO/FEM Additional weight per 1 m lift Weight
kg
CAD
ER2-100IS 10 12,5 11,2 4 3,5x2 40/20 M4/1Am 11 303
ER2-150IS 15 18,8 11,2 6 3,5x2 40/20 M4/1Am 17 404
ER2-200IS 20 25,0 11,2 8 3,5x2 40/20 M4/1Am 22 476
* Note: The high speed is present to the maximum speed at the KITO factory in Japan. The low speed can be increased or respectively reduced.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
WLL
Product
Lifting speed*(m/min)
Min. headroom C
D
a
b
w
g
tons
code
  50Hz high 50Hz low
mm
mm
mm
mm
mm
mm
10
ER2-100IS
Preset
Adjustable
3,3 0,6
0,3
1370
1210
798
849
956
80
15
ER2-150IS
Preset
Adjustable
2,2 0,4
0,2
1595
1520
798
1022
1129
86
20
ER2-200IS
Preset
Adjustable
1,7 0,3
0,2
1710
1600
798
1198
1305
102
