Casar
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright finish
  • Galvanized
  • Double parallel lay construction
  • Not to be used with swivel

Typical applications: Very flexible construction with a high breaking load. Hoist rope for electrical hoist and other lifting devices, where rotation resistant ropes are not required.

Design: Ordinary lay and Lang's lay. Ordinary right hand lay, ordinary left hand lay can be offered.

ISO 4309 Rope Category No: 4-5mm RCN.02, 5,5-6.5mm RCN.07, 7-28mm RCN.08

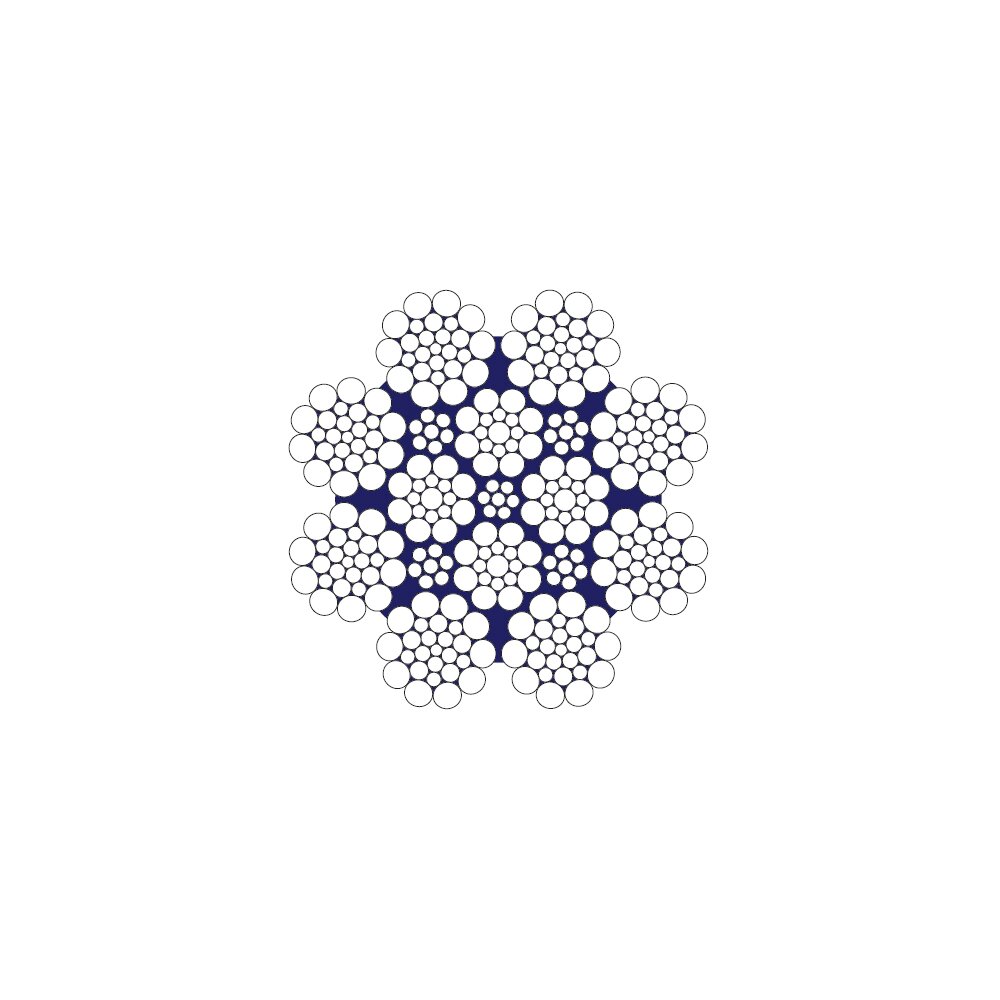

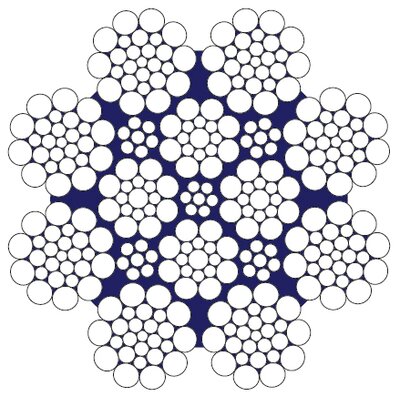

  • Rope construction: 8 strand rope in parallel lay construction made out of conventional strands.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle. Cannot be used for big lifting heights, unguided loads a
  • Fill factor: 0.64
