Casar
  • Left hand langs lay
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Right hand langs lay
  • Bright
  • Galvanized
  • Not to be used with swivel

Applications: Very flexible Filler construction. Rope for a huge number of different applications, can be
used as hoisting rope in multiple part reeving for smaller lifting heights as well as for twin
hoist systems with left and right hand lay ropes for greater lifting heights.

Features:
-High breaking force
- Very stabile wire rope construction with good fatigue properties.
- A plastic layer between inner and outer strands protects against inner wear and protects the core from corrosion.

ISO 4309 Rope Category No: 8-72mm RCN.06

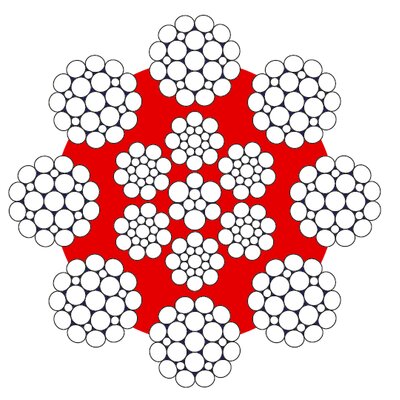

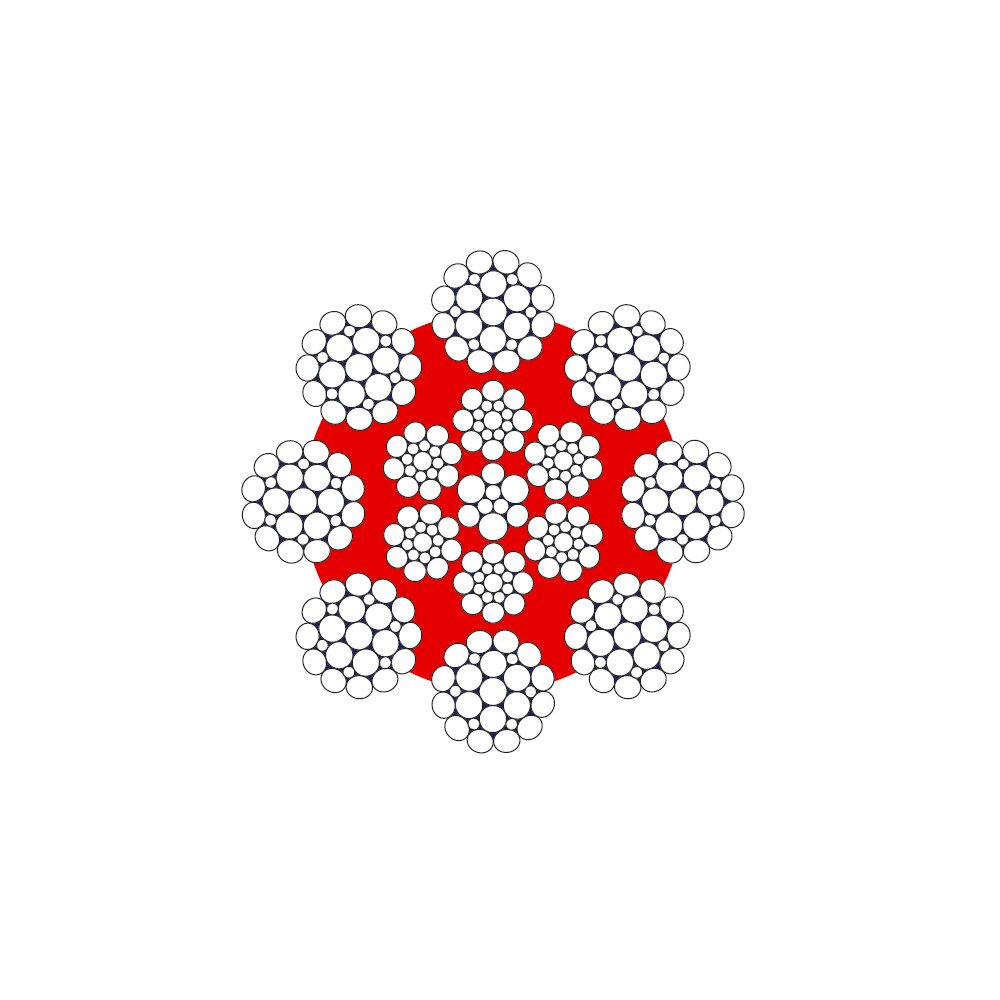

  • Rope construction: 8 strand rope made out of conventional strands, plastic layer between the inner and outer strands.
  • Standard: EN 12385-4
  • Fill factor: 0.62
  • Tolerance: 2% - 4%
  • Overhead cranes
  • Tower crane
  • Container crane
  • Loading crane
  • Offshore crane

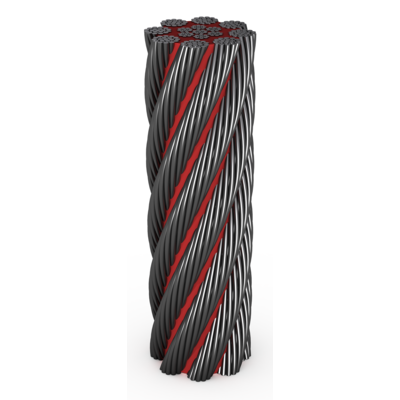

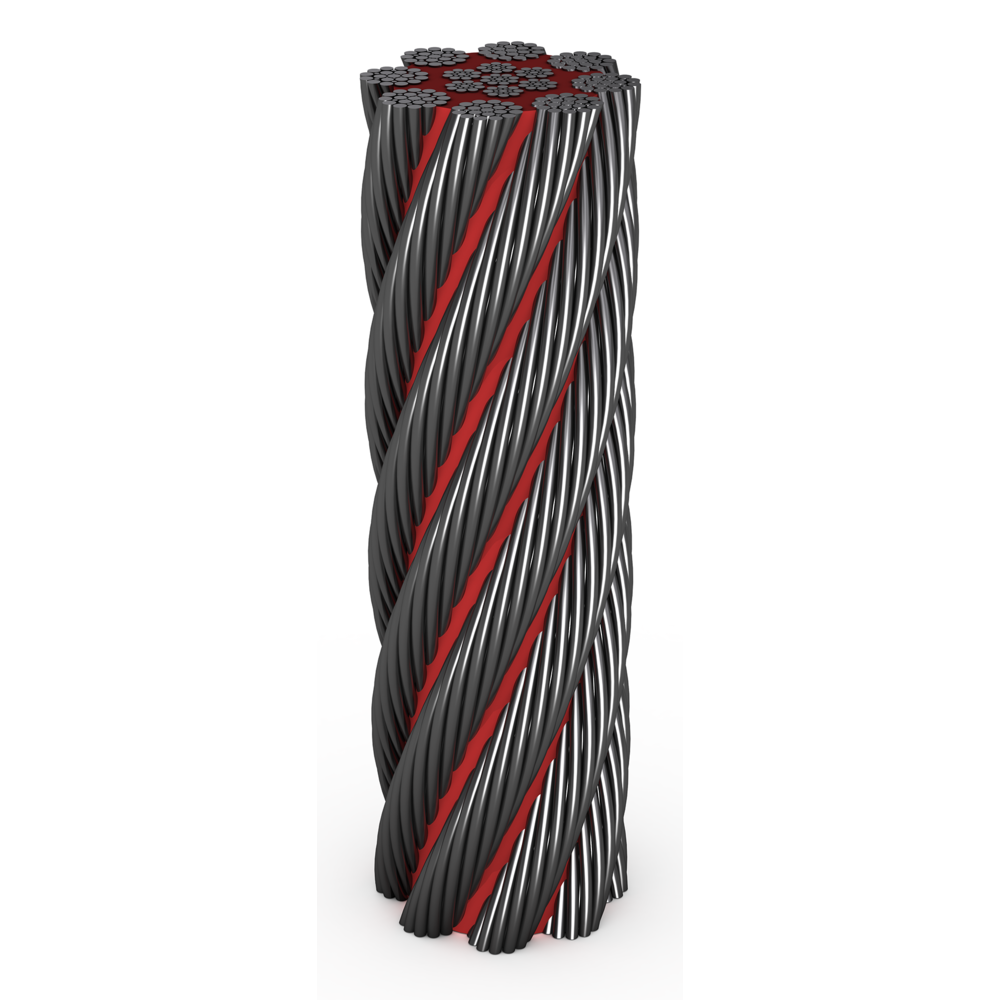

Stratoplast_225mm
Stratoplast
Select a row from the table below, then click the add to quote button
Art No Diameter
mm
Steel Area
mm²
Min. breakingforce
kN
1960 N/mm²
Weight
kg/100m
01.B11CSP080G 8 30,6 52,3 0,27
01.B11CSP090G 9 38,8 66,4 0,35
01.B11CSP100G 10 48,8 82 0,43
01.B11CSP110G 11 59,6 98 0,53
01.B11CSP120G 12 68,3 118 0,61
01.B11CSP127G 12,7 78 132,2 0,69
01.B11CSP130G 13 81,7 138,9 0,73
01.B11CSP140G 14 95,1 160,1 0,85
01.B11CSP150G 15 110,8 184,1 0,99
01.B11CSP160G 16 125,4 209,3 1,12
01.B11CSP170G 17 140,3 234,2 1,25
01.B11CSP180G 18 157,7 265,5 1,4
01.B11CSP190G 19 178,6 292,9 1,59
01.B11CSP200G 20 198,2 327 1,76
01.B11CSP210G 21 217,1 359 1,93
01.B11CSP220G 22 254,4 394,5 2,18
01.G26CSP250G 25 302 514,2 2,69
01.B11CSP260G 26 326,8 558,8 2,91
01.B11CSP270G 27 353,2 593,3 3,14
01.B11CSP280G 28 375,2 638 3,34
01.B11CSP320G 32 495,4 837,9 4,41
01.B11CSP330G 33 526,4 896,5 4,69
01.B11CSP340G 34 556,8 945,3 4,96
01.B11CSP360G 36 626,5 1 054,7 5,58
01.B11CSP380G 38 705,1 1 186 6,28
01.B11CSP400G 40 770,1 1 307,9 6,85
01.B11CSP420G 42 859,3 1 448,9 7,65
01.B21CSP480G 48 1 123,1 1 874,5 10
01.B11CSP500G 50 1 212,7 2 049,4 10,79
01.B11CSP520G 52 1 309,7 2 229,9 11,66
01.B11CSP540G 54 1 410,5 2 408,8 12,55
01.G16CSP600G 60 1 730 2 902,9 15,4
01.B11CSP620G 62 1 847,2 3 118 16,44
01.B11CSP640G 64 1 968,3 3 322,1 17,52
01.B11CSP660G 66 2 093,3 3 541,6 18,63
01.G21CSP720G 72 2 491,2 4 154,4 22,17
