General:
Swageless stainless fork / jaw terminal for safe, reliable and machine free self assembly.

  • Material: Stainless steel AISI 316.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.
  • Warning: Read assembly instructions before use!
Swageless terminal with fork illu
Lloyds-Register-TA

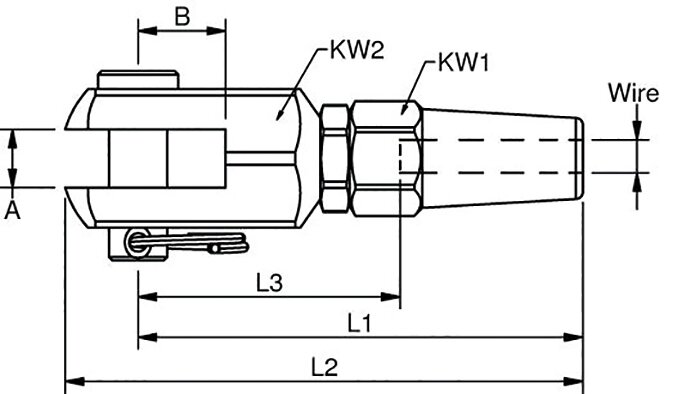

Stainless swageless terminal with fork_dwg
Select a row from the table below, then click the add to quote button
Part Code MBL
t
Pin size Wire Ø
inch
KW1
mm
KW2
mm
Wire Ø
mm
A
mm
B
mm
L1
mm
L2
mm
L3
mm
L4
mm
Weight
kg/100pc
CAD
10.07840603 0,75 6 1/8" 12 14 3 6 11 55 63 29 8 5,5
10.07840804 1,5 8 5/32” 14 19 4 8 12 62 73 35 8 7,3
10.07841005 2,18 10 - 16 22 5 10 15 72 83 42 10 15
10.07841206 3,7 12 1/4” 19 27 6 12 18 82 95 48 12 23
10.07841207 4,7 12 9/32”” 21 29 7 12 18 102 115 55 13 29
10.07841408 5,6 14 5/16” 24 30 8 14 21 103 118 58 14 38
10.07841610 8,3 16 - 27 36 10 16 24 117 135 70 16 63
10.07841912 12 19 - 32 42 12 18 26 142 162 75 16 97
10.07842214 14 22 - 36 46 14 21 30 162 191 88 19 135
10.07842516 23 25 - 41 55 16 23 35 184 217 102 22 215
All breakloads are determined by the wedges (jaws) and the clevis pin.
