Gas-spring balanced
General:
For medium-sized loads and large coil widths. This type of hook is mostly used for aluminium and paper-roll coils. For further information, see the introductory text above in the section on C-hooks.
Design: Hollow-beam with built-in gas spring for lightweight construction. The lifting eye on the loaded gas spring balances the coil hook, which means that the fork remains horizontal, regardless of whether the hook is empty — or carrying at least 15% of the maximum load.

Proof: 1,5 x WLL.

  • Material: Hollow-beam of high-strength structural steel.
  • Marking: Type, working load limit, maximum coil width and CE marking.
  • Finish: Yellow painted.
  • Safety factor: 1,5 x WLL.
CKBG_e_225mm
CKBG_m_micke_lom_225mm
Select a row from the table below, then click the add to quote button
Art No WLL
Ton

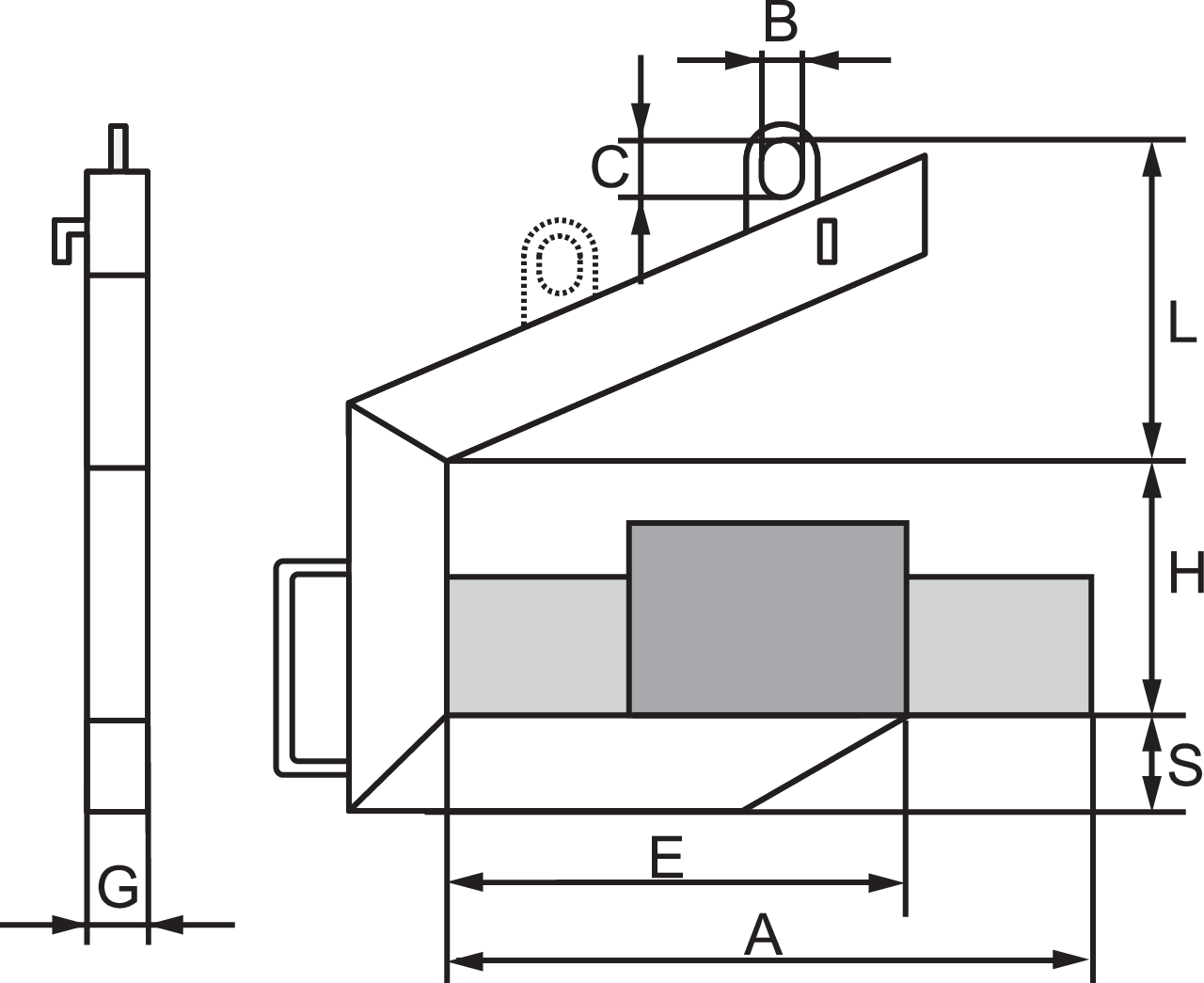

A (coil width) B (mm) C (mm) E (mm) G (mm) H (mm) L (mm) S (mm) Weight
kg
CKBG50-136 5 1360-1000 80 110 1,250 100 300 635 230 170
CKBG50-120 5 1200-1000 80 110 900 150 400 620 125 175
Other dimensions and design are made by request.
