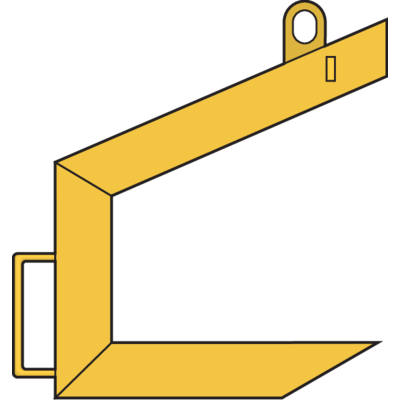

Coil Hook Type CKBG

Gas-spring balanced
General:
For medium-sized loads and large coil widths. This type of hook is mostly used for aluminium and paper-roll coils. For further information, see the introductory text above in the section on C-hooks.
Design: Hollow-beam with built-in gas spring for lightweight construction. The lifting eye on the loaded gas spring balances the coil hook, which means that the fork remains horizontal, regardless of whether the hook is empty — or carrying at least 15% of the maximum load.

Proof: 1,5 x WLL.

  • Material: Hollow-beam of high-strength structural steel.
  • Marking: Type, working load limit, maximum coil width and CE marking.
  • Finish: Yellow painted.
  • Safety factor: 1,5 x WLL.
