General:
Container lifting lug set for lifting of standard containers in the corner fittings on top. Only for vertical lifting slings. A set contains 4 lugs and are to be used together with a lifting beam. The lugs suits standard ISO corner boxes.

Features: Provided with barrier which locks in the corner fittings after the lug is rotated 90° which prevent the lug to unhook. No part of the lug is outside the containers sides.

  • Material: Alloy steel.
  • Marking: CE-marked
  • Temperature range: -40°C up to +100°C
  • Warning: Do not use with 4-leg slings. Only for straight lifting.
  • Safety factor: 4:1
  • Grade: 8
camlock_mk2_m_225mm
Select a row from the table below, then click the add to quote button

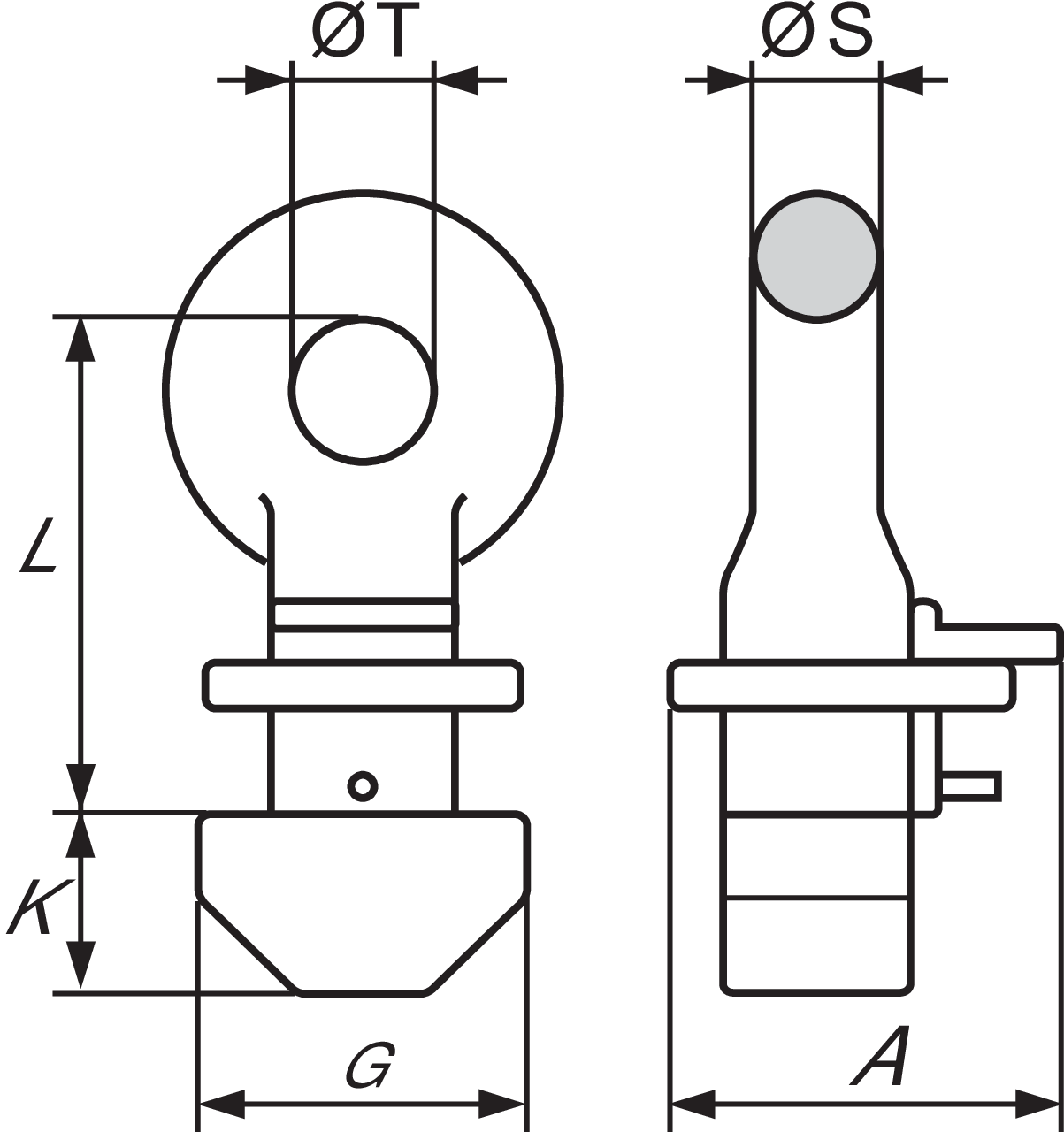

Part Code Code WLL
ton
A
mm
G
mm
K
mm
L
mm
S
mm
T
mm
Weight
kg
CAD
11.27CLT56 CLT-56 56 123 101 57 160 39 45 28
WLL and weight regarding a complete set of 4 pcs.
