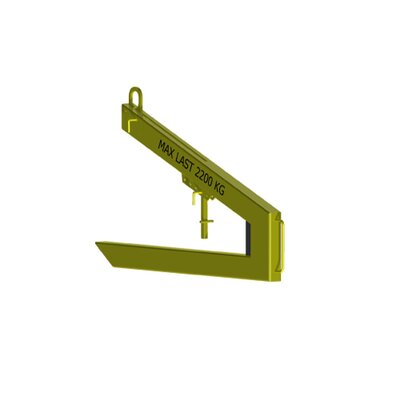

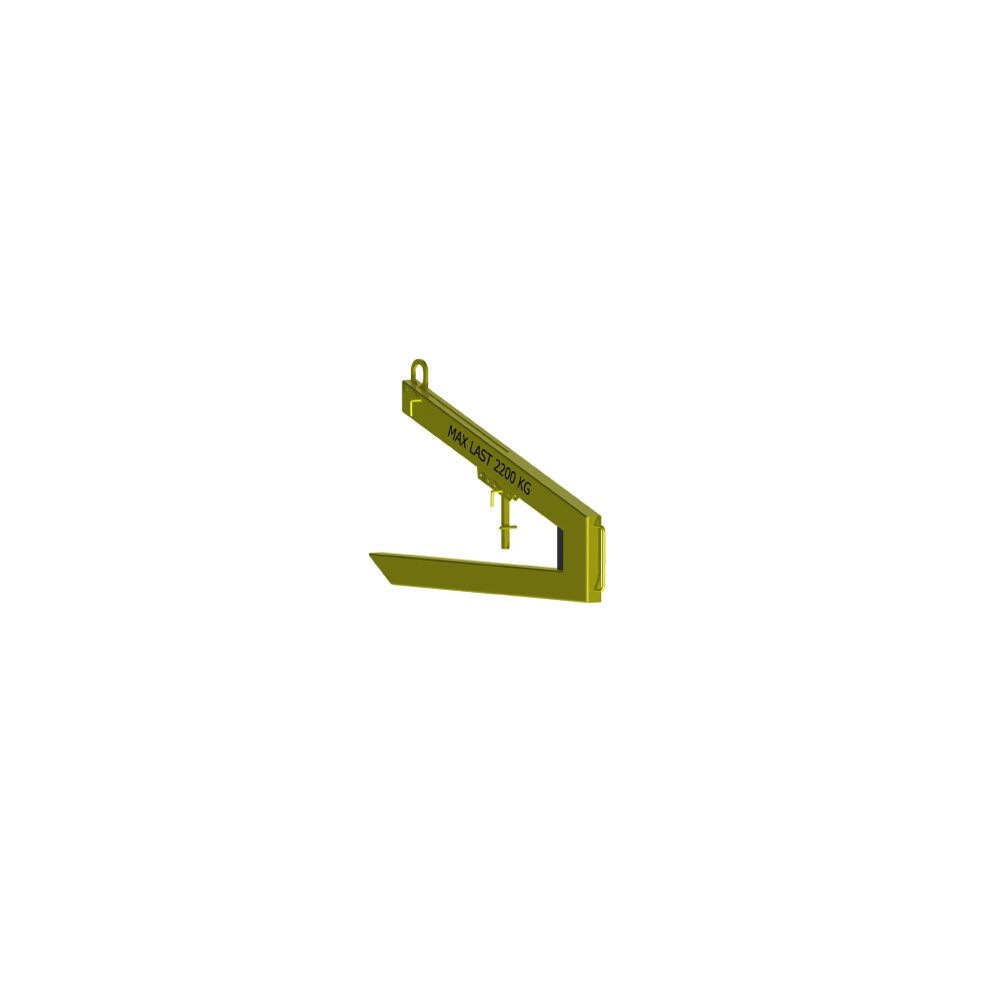

General: For handling of 2 m and 1.5-m lengths of concrete pipes. The pipe lifter is self-balancing, and has a short fork (about 70% of the pipe length), which simplifies handling.
Design: The hollow beam design gives a light weight product. The gas spring-loaded lifting eye makes the pipe lifter self-balancing, which means that the fork remains horizontal regardless of whether the pipe lifter is empty or loaded to a minimum of 15% of the maximum load. The stop handle can be moved to one of two positions, depending on the mode of handling.
Proof: Batch proof 1,5 x max last.
- Material: Hollow beam and plate of high-strength structural steel. Rubber on the inside of the back protects the pipe’s edge.
- Marking: Maximum load, pipe length and CE-markning.
- Finish: Yellow painted.
