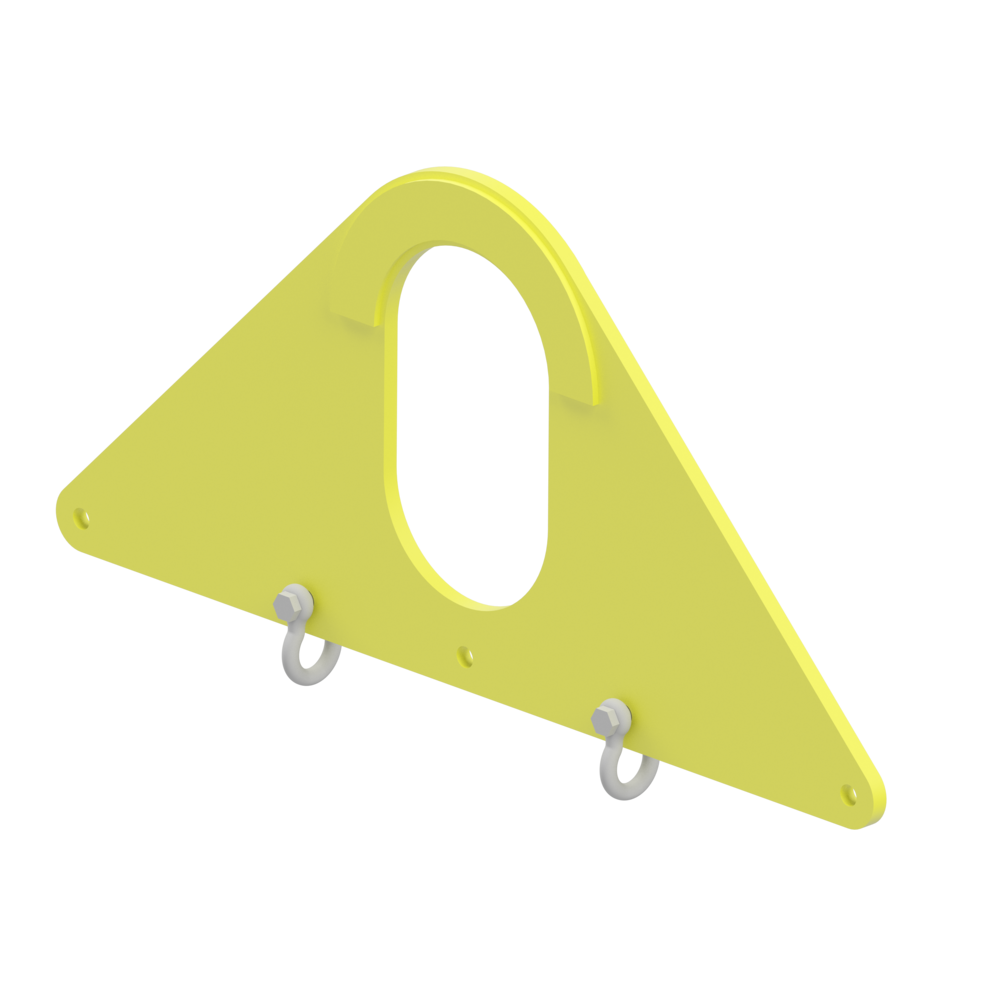

General: The lifting triangle has the same function as a short beam or a spreader. Given working load limits are valid for a maximum  top sling angle of 90°. For top angles between 90°-120° working load limit shall be reduced by 30%. All lifting triangles are supplied with 2 shackles according to table. Working load limit in the centre shackle hole is equal to the working load limit of the shackle according to the table.
Design: Cut sheet metal. Wear plates and spacers for the shackles.


Proof: Batch proof 2 x WLL.



  • Material: Plate of high-strength structural steel.
  • Marking: WLL and CE-marking.
  • Finish: Yellow painted.
  • Note: Other loads and dimensions are available on request.
