Haklift

Clevis grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the clevis attachment.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

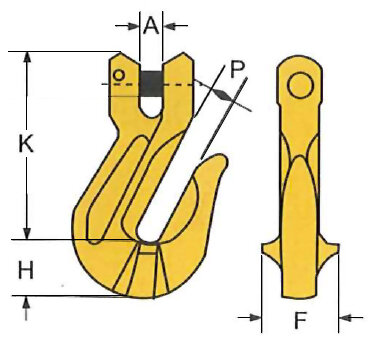

Part Code WLL
ton
Chain size
mm
A
mm
K
mm
P
mm
F
mm
H
mm
Weight
kg
CAD
LYKH78 2 7/8 9 70 11 33 18 0,32
LYKH10 3,15 10 12 97 13 46 29 0,73
LYKH13 5,3 13 15 121 16 57 42 1,6
LYKH16 8 16 18 141 19 74 42 2,8
LYKH20 12,5 20 23 163 24 74 56 5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
