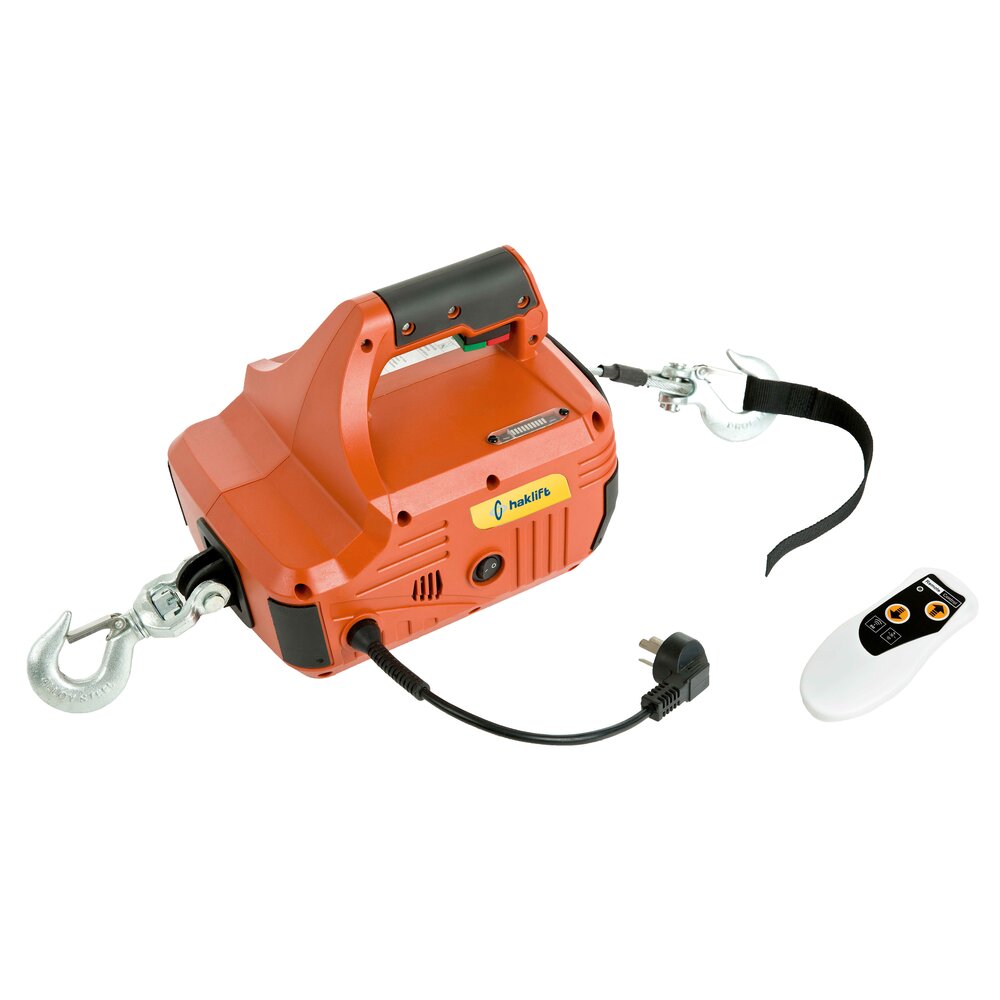

Light and easy to operate electrical winch for pulling and lifting. Equipped with remote control, latch hook and overload indicator.
Note! Cable operating lengths:
- VANOS250: 6.8 mtr
- VANOS450: 3.4 mtr
- Features: Speed 5 m/min | Remote control range 8 m (unobstructed view)
- Marking: CE-marked

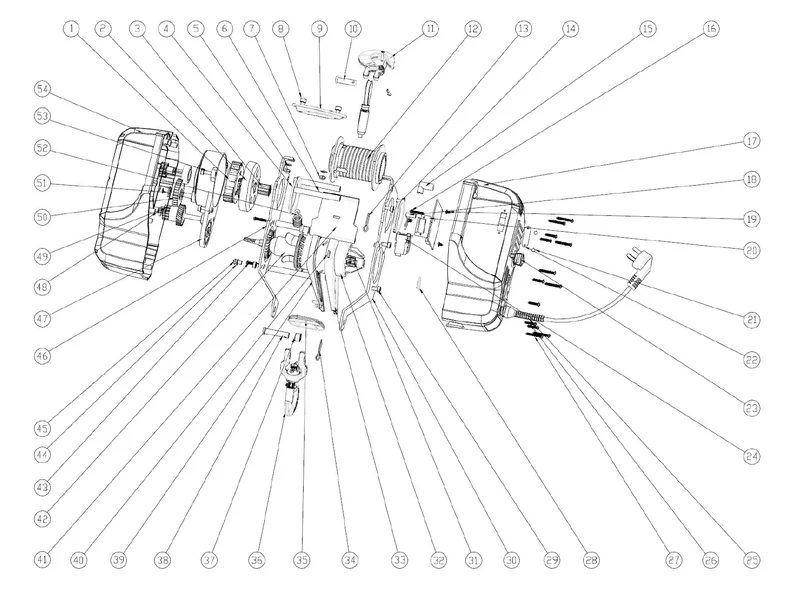

SPARE PARTS
| Spare part (product code) | Description | Suitable for hoist (product code/-s) |
| VANOSVAI8 | Wire rope 8 m | ø 4,8 mm, effective working length 6,8 m | Incl. drum | VANOS250 |
| VANOSVAI4,6 | Wire rope 4,6 m | ø 5,8 mm, effective working length 3,4 m | Incl. drum | VANOS450 |
| VANOSKAUKO | Remote control | Part no. 55 | VANOS250, VANOS450 |
| VANOSHIILI | Coal | VANOS250, VANOS450 |
| VANOSVO3 | Spline shaft | Part no. 3 | VANOS250, VANOS450 |
| VANOSVO20 | Circuit board set | Part no. 20 | VANOS250, VANOS450 |
| VANOSVO25 | Power cord set | Part nos. 25 and 28 (plastic snap ring) | VANOS250, VANOS450 |
| VANOSVO41 | Pressure plate | Part no. 41 | VANOS250, VANOS450 |
| VANOSVO52 | Pressure plate's tension spring | Part no. 52 | VANOS250, VANOS450 |
| VANOSYKOU | Top swivel hook, incl. fasteners | Part no. 36 | VANOS250, VANOS450 |
| VANOSAKOU | Bottom hook, incl. fasteners | Part no. 11 | VANOS250, VANOS450 |
Also other spare parts available with a delivery time, ask our sales for more information
