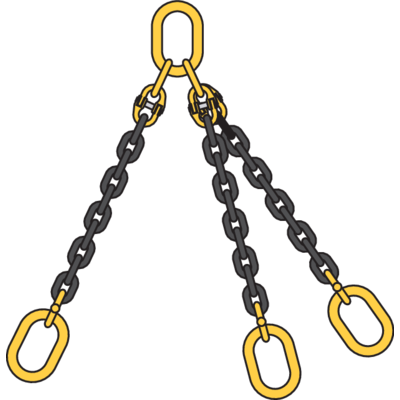

Design: Master link in one end and master link in each leg.

Dimension: Ø 6–20 mm,  other dimensions on request.

  • Material: Alloy steel grade 8.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code Diameter
Working load limit (WLL) in tons 45°-60° CAD
11.90KT063 6 2,36 1,7
11.90KT083 8 4,25 3
11.90KT103 10 6,7 4,75
11.90KT133 13 11,2 8
11.90KT163 16 17 11,8
11.90KT203 20 26,5 19

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
