Casar
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright
  • Galvanized
  • Compacted strands
  • Double parallel lay construction
  • Not to be used with swivel

Features:
- Very high breaking strength and provides good structural stability.
- Excellent spooling on the drum.
- Very flexible rope construction with high abrasion resistance and good service life.

ISO 4309 Rope Category No: 10-56mm RCN.09, 58-72mm RCN.11

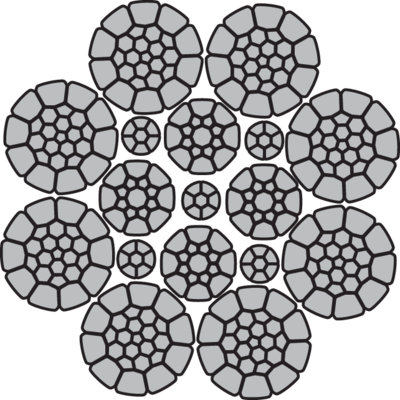

  • Rope construction: 8 compacted strands closed in a parallel lay together with the inner core strands.
  • Standard: EN 12385-4
  • Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle. Cannot be used for big lifting heights, unguided loads a
  • Fill factor: 0.73
  • Tolerance: 2% - 4%
  • Tower crane
  • Crawler crane
Turbolift[new]_225mm
turbolift
Select a row from the table below, then click the add to quote button
Art No Diameter
mm
Steel Area
mm²
Min. breakingforce
kN
1960 N/mm²
Min. breakingforce
kN
2160 N/mm²
Weight
kg/100m
01.B12CTL080G 8 36,8 59,9 31
01.B12CTL090G 9 46,6 75,9 40
01.B12CTL100G 10 57,5 94 104 49
01.B12CTL110G 11 69,8 114 125 59
01.B12CTL120G 12 83,3 136 149 71
01.B12CTL130G 13 98,1 158 175 83
01.B12CTL140G 14 114 184 203 97
01.B12CTL150G 15 131 212 234 111
01.B12CTL160G 16 149 242 267 126
01.B12CTL170G 17 168 275 303 143
01.B12CTL180G 18 187 308 340 159
01.B12CTL190G 19 210 340 375 178
01.B12CTL200G 20 232 379 418 197
01.B12CTL210G 21 254 415 458 216
01.B12CTL220G 22 281 459 506 239
01.B12CTL230G 23 307 502 553 261
01.B12CTL240G 24 334 543 598 284
01.B12CTL250G 25 361 590 650 307
01.B12CTL260G 26 392 636 701 333
01.B12CTL280G 28 452 742 818 384
01.B12CTL300G 30 520 855 943 442
01.B12CTL320G 32 593 968 1 067 504
01.B12CTL340G 34 667 1 095 1 207 567
01.B12CTL360G 36 747 1 220 1 345 635
01.B12CTL380G 38 837 1 362 1 501 711
01.B12CTL400G 40 932 1 515 1 669 792
Other dimensions and tensile grade on request.
