Casar
  • Ordinary right hand lay
  • Bright
  • Double parallel lay construction
  • Not to be used with swivel



ISO 4309 Rope Category No: 8-72mm RCN.06



  • Features: High breaking strength. Very flexible
  • Rope construction: 8 strand rope in parallel lay construction made out of conventional strands.
  • Standard: EN 12385-4
  • Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle. Cannot be used for big lifting heights, unguided loads and short number of falls.
  • Fill factor: 0.66
  • Overhead cranes
  • Tower crane
  • Crawler crane

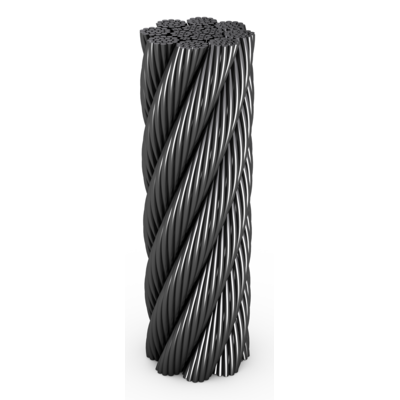

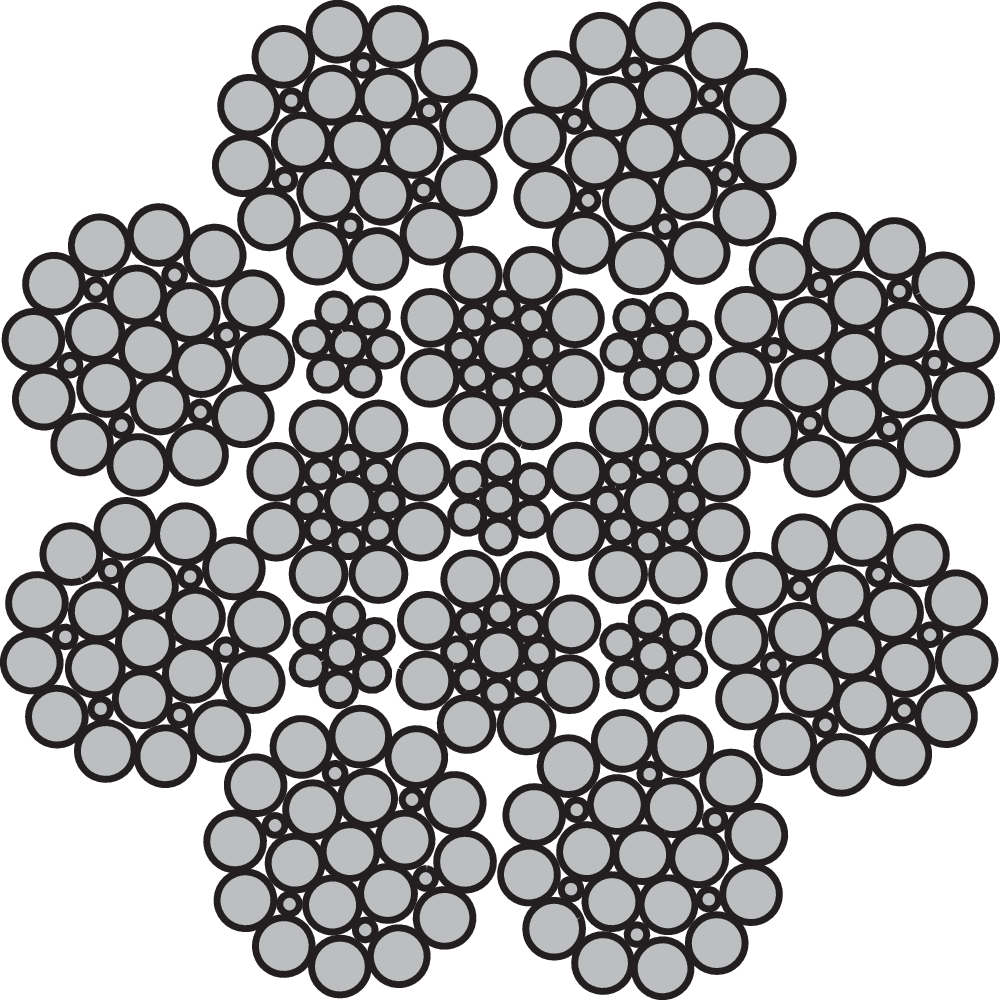

Stratolift[new]_225mm

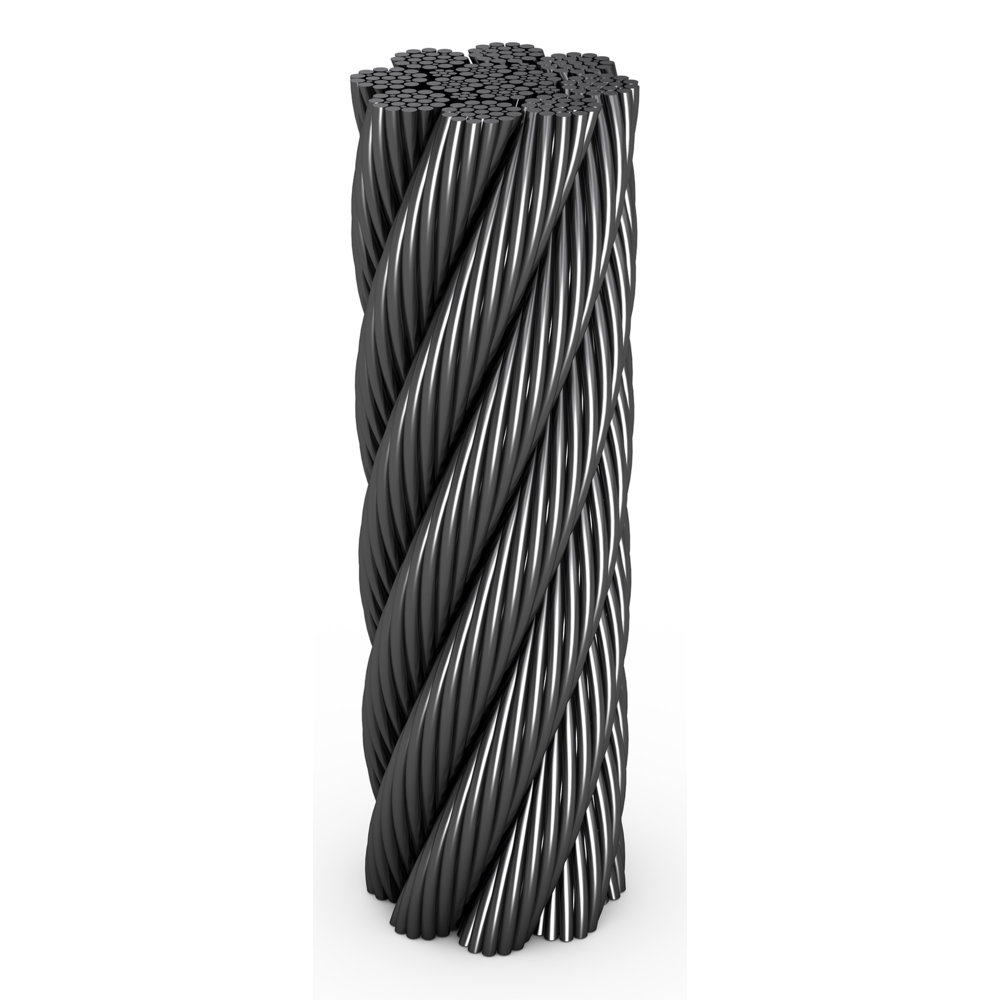

Stratolift
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Steel Area
mm²
Min. breakingforce
kN
1960 N/mm²
Weight
kg/100m
01.B10---100G 10 51,8 87,3 46
01.B10---110G 11 63,6 107 57
01.B10---120G 12 74,9 126 67
01.B10---130G 13 87 147 78
01.B10---140G 14 100 169 89
01.B10---150G 15 117 197 104
01.B10---160G 16 132 223 118
01.B10---170G 17 149 250 132
01.B10---180G 18 168 283 149
01.B10---190G 19 190 320 169
01.B10---200G 20 209 352 186
01.B10---210G 21 232 392 207
01.B10---220G 22 255 430 227
01.B10---230G 23 277 467 247
01.B10---240G 24 299 505 267
01.B10---250G 25 324 545 288
01.B10---260G 26 349 589 311
01.B10---280G 28 405 683 360
01.B10---300G 30 468 788 416
01.B10---320G 32 529 892 471
01.B10---340G 34 592 998 527
01.B10---360G 36 672 1 132 598
01.B10---380G 38 755 1 272 672
01.B10---400G 40 831 1 401 740
01.B10---420G 42 921 1 552 819
Other dimensions and tensile grade on request.
