Design: Forged shackle in high quality.

  • Material: Stainless acid proof steel. AISI 316.
  • Marking: CE-marked, WLL
  • Finish: Polished
  • Safety factor: 6:1
101-r_e_225mm
Select a row from the table below, then click the add to cart button
Part Code Code WLL
ton

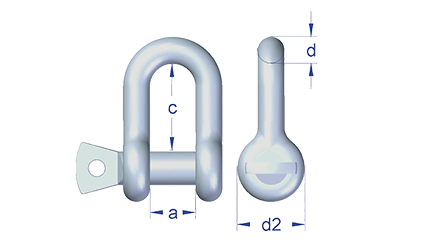

Thread a
mm
c
mm
d
mm
d2
mm
Weight
kg
CAD
11.39A073008S 105-S 0,4 M8 16 30 8 16 0,05
11.39A073010S 106-S 0,6 M10 20 38 10 20 0,115
11.39A073012S 107-S 0,9 M12 26 50 12 24 0,202
11.39A073016S 108-S 1,5 M16 24 52 13 34 0,39
11.39A073020S 109-S 2,5 M20 28 65 16 40 0,6
11.39A073022S 110-S 3 M22 30 72 19 48 0,89
*Tolerance: +/- 5%

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
