General: The sheaves are intended to cranes and elevators where the standard specifications for the crane ropes are applied and for other installations where lenient service are desired. Relation between diameters are app. 20 (wire rope Ø x 20 = ØE), which answers to the demands on machine group 2m.
Design: 6806-B to 6810-B are turned, the larger dimensions are cold formed or rolled from steel which result in stabil design and low weight. Even and smooth marks which spare the wire rope. Welded bronze bushed nave which can easily be adapted to the customers wishes. Lubrication shall be made through the shaft.

  • Material: High-tensile construction steel, bush from red metal SS 5204-15.
  • Finish: 6806-B to 6810-B are yellow zincified, larger dimensions are painted.
6800_new[Yellow]_225mm_2
6800_90_new_3_225mm
Select a row from the table below, then click the add to quote button

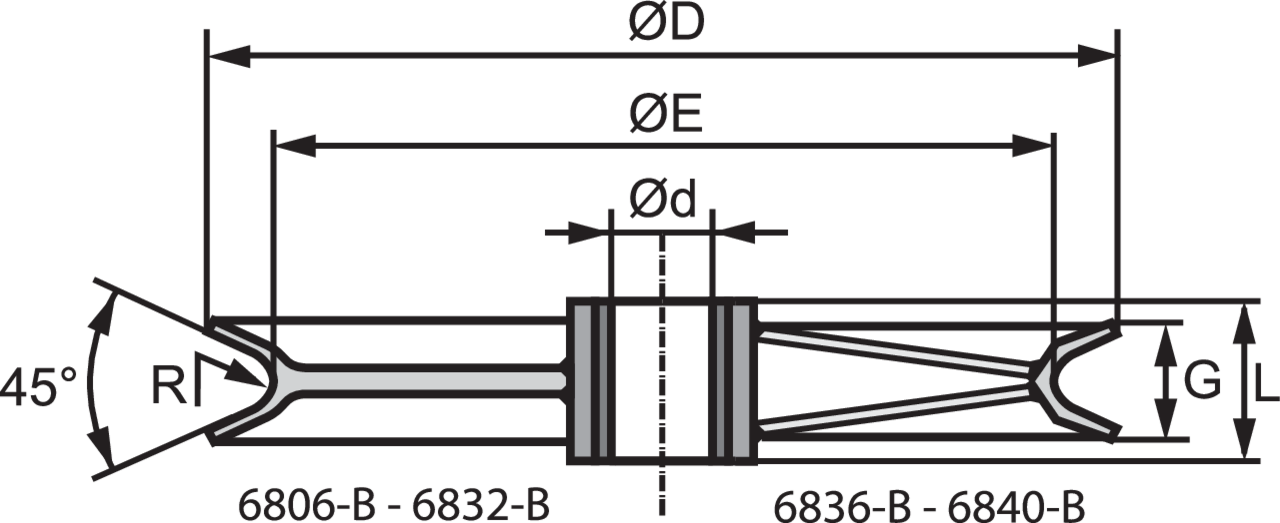

Art No Code D (mm) E (mm) G (mm) L (mm) R (mm) d H8 Wire Ø (mm) Weight
kg
CAD
10.354016563B 6806-B 155 125 24 30 3,2 15 5-6 1,4
10.354016564B 6808-B 190 160 26 40 4,3 20 7-8 2,2
10.354016565B 6810-B 235 200 30 45 5,3 30 9-10 3,5
10.35SR1250001B 6812-B 290 250 32 50 6,4 35 11-12 5,3
10.35SR1280001B 6814-B 325 280 40 60 7,5 45 13-14 7,8
10.35SR1315001B 6816-B 370 315 43 70 8,6 50 15-16 11
10.35SR1355001B 6818-B 415 355 48 75 9,7 60 17-18 14
10.35SR1400001B 6820-B 470 400 58 90 10,8 65 19-20 16
10.35SR1450001B 6822-B 525 450 65 100 12 75 21-22 26
10.35SR1500001B 6825-B 580 500 65 120 14 90 24-25 36
10.35SR1575001B 6828-B 660 575 70 120 15 100 26-28 58
10.35SR1630001B 6832-B 720 630 82 140 17 120 30-32 71
10.35SR1710001B 6836-B 810 710 90 160 19 140 34-36 89
10.35SR1800001B 6840-B 910 800 90 160 22,5 160 38-40 133
Other dimensions and designs on request.
