• Not for lifting

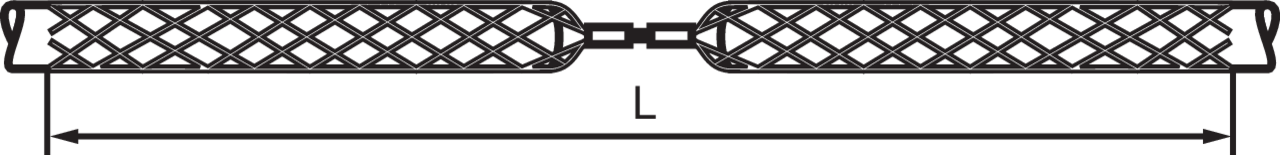

General: Double stockings assembled with two clamps, used for wire rope change.
Design: Plaited of double wire ropes.


  • Material: Steel wire-coated with zinc.
  • Warning: Not for lifting.
KD_225mm
KD_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code MBL
ton
Grip Ø (mm) L (mm) Weight
kg
CAD
02.38KD0 KD-0 0,4 6-10 800 0,25
02.38KD1 KD-1 0,85 10-15 800 0,35
02.38KD2 KD-2 1,62 15-22 800 0,45
02.38KD3 KD-3 3,75 22-32 1 220 0,75
02.38KD4 KD-4 5,49 32-45 1 220 1,9
02.38KD5 KD-5 5,49 45-55 1 220 2
02.38KD6 KD-6 7,32 55-70 1 800 2,4
02.38KD7 KD-7 7,32 70-90 1 800 2,6
02.38KD8 KD-8 10,61 90-110 1 800 4,2
