General: Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. The TSCC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece. The articulated lifting eye ensures an effective clamping force in every position.

Proof load: 2 x WLL.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm
  • Safety factor: 5:1.
TSCC_HR
TSCC_m3
TSCC_m
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

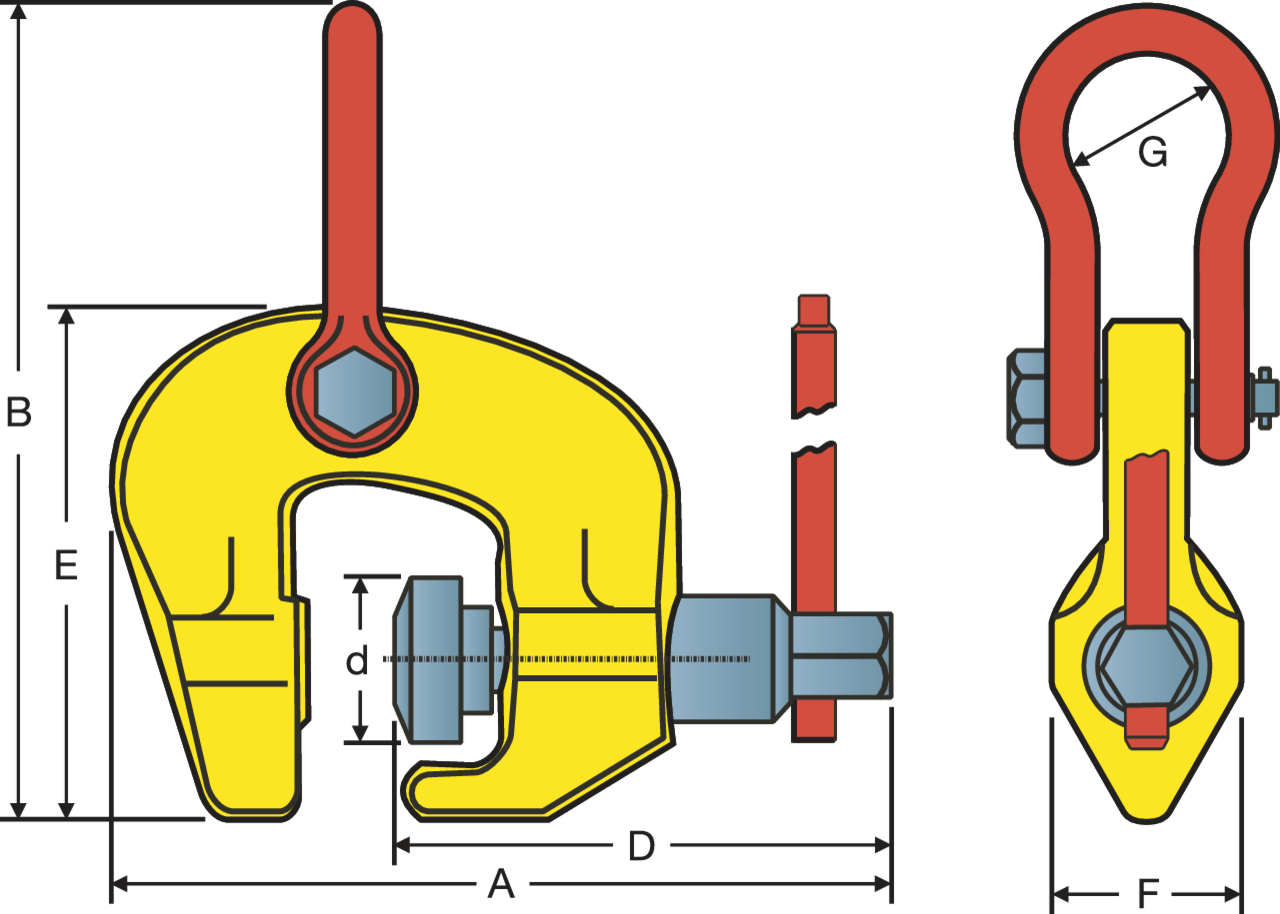

Jaw opening R A (mm) B (mm) D (mm) E (mm) F (mm) G (mm) Weight
kg
CAD
16.01900500 0.5 TSCC 0,5 0-35 156 113 26 76 30 17 0,96
06.15TSCCW100 1 TSCC-W 1 50-100 258 273 42 190 46 45 3,2
16.0186271 1 TSCC 1 0-30 175 204 42 128 46 38 3,2
16.01903 3 TSCC 3 0-50 224 265 49 165 54 50 7
06.15TSCCW300 3 TSCC-W 3 25-75 250 291 49 191 54 50 7,8
16.0186276 6 TSCC 6 0-75 291 365 63 214 69 80 18
